Eureka Lighting (Acuity Brands Lighting)

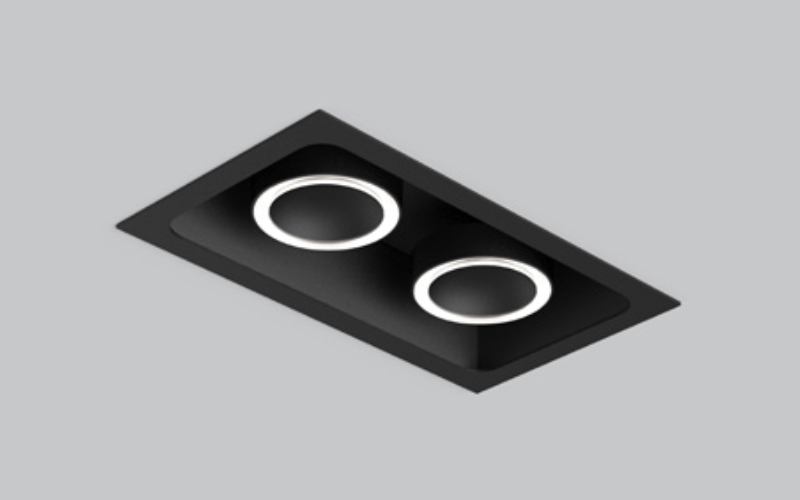

12900-2X1-NT. OUTLINE CEILING TRIMS.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
Outline is a modern and distinctive luminaire that creates a bold graphic statement. It exhibits a willingness to challenge traditional notions of projector-type lighting design. Without any visible hardware, the simple enclosure of the recessed version puts the focus on the projectors.
INSTALLATION:
With a simple push, Outline easily secures itself within the ceiling hole for a safe and quick installation. The Outline is suitable for new construction, remodeling and grid ceiling installation. For a seamless look, a trimless option is available.
STRUCTURE:
A sturdy steel housing and injected aluminium projector heads coated in a high-quality fine texture finish.
OPTIC:
The patent-pending Halo lens combined with the glare-control ring create a uniform light beam with a smooth cut-off.
ROTATION ANGLE: 360°+
ADJUSTMENT ANGLE: 40°
STRUCTURE FINISH BLKE | WHE
Outline is a modern and distinctive luminaire that creates a bold graphic statement. It exhibits a willingness to challenge traditional notions of projector-type lighting design. Without any visible hardware, the simple enclosure of the recessed version puts the focus on the projectors.
INSTALLATION:
With a simple push, Outline easily secures itself within the ceiling hole for a safe and quick installation. The Outline is suitable for new construction, remodeling and grid ceiling installation. For a seamless look, a trimless option is available.
STRUCTURE:
A sturdy steel housing and injected aluminium projector heads coated in a high-quality fine texture finish.
OPTIC:
The patent-pending Halo lens combined with the glare-control ring create a uniform light beam with a smooth cut-off.
ROTATION ANGLE: 360°+
ADJUSTMENT ANGLE: 40°
STRUCTURE FINISH BLKE | WHE
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.3"L: 10.9"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)18.6 W29.6 W
- Lumens(Approx)1528 Lm2486 Lm
- OpticsDirectFlood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- Environment
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingNew Construction
- Housing Depth4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time12900-2X1-NT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
