Eureka Lighting (Acuity Brands Lighting)

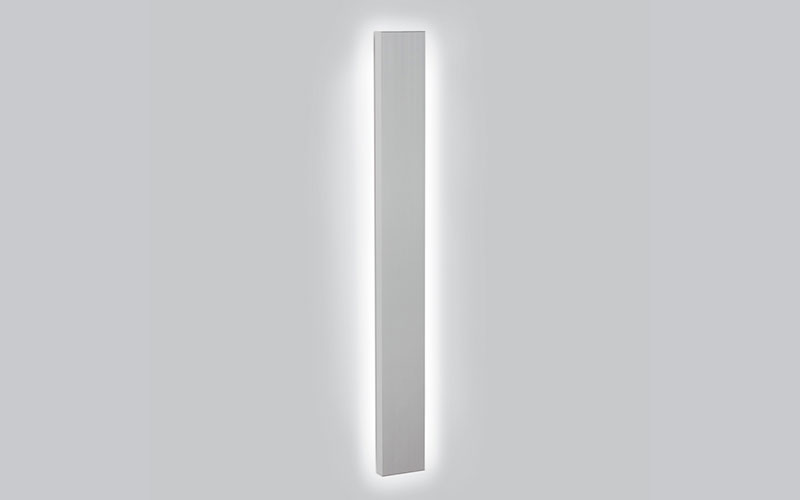

3132-48. DUSK WALL SURFACE.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
An architectural staple with a flash of chrome has crisp profile that offers soft indirect light in 3 lengths.
LIGHT SOURCE:
ED and T5 light sources. Dimming and EM available.
STRUCTURE:
Structure in extruded aluminum & die-stamped steel. Housing with powder coar finish housing and chrome end caps.
REFLECTOR:
Highly reflective powder coated die-formed reflectors.
STRUCTURE FINISH CHR | M G | SAA | WH
An architectural staple with a flash of chrome has crisp profile that offers soft indirect light in 3 lengths.
LIGHT SOURCE:
ED and T5 light sources. Dimming and EM available.
STRUCTURE:
Structure in extruded aluminum & die-stamped steel. Housing with powder coar finish housing and chrome end caps.
REFLECTOR:
Highly reflective powder coated die-formed reflectors.
STRUCTURE FINISH CHR | M G | SAA | WH
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 46.60"H: 3"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)18 W28 W
- Lumens(Approx)1741 Lm2540 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAADA
- Environment
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3132-48
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
