Eureka Lighting (Acuity Brands Lighting)

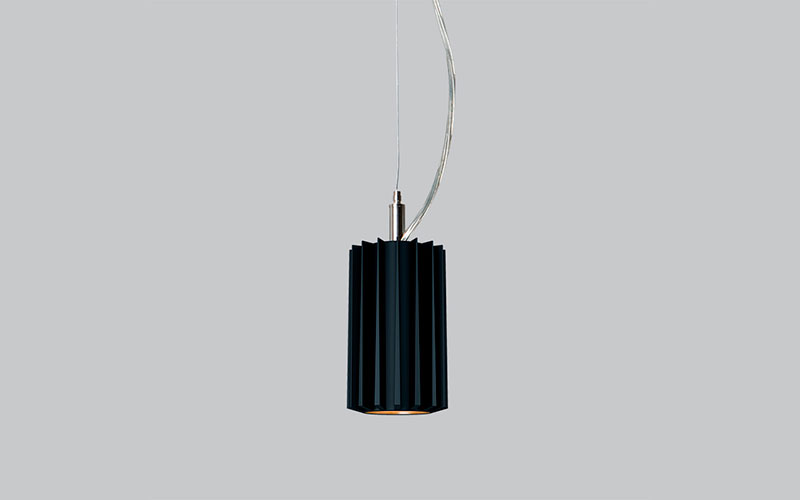

4045. TURBINE CEILING SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
The largest and most powerful in our black technical projectors, Turbine really grinds out the lumens. The exposed heat sink is designed to look cool and keep cool while generating up to 1615 delivered lumens (18W – 40° optic).
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Turbine is mounted on a non-field adjustable 10 mm stem. Projector feature a high performance spring tension swivel.
LIGHT SOURCE:
11W and 18W LED, with 0-10v (DV) or Phase (DP) dimming versions available.
STRUCTURE:
Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
20° or 40° beam angles total internal reflexion (TIR).
FINISH CHR
The largest and most powerful in our black technical projectors, Turbine really grinds out the lumens. The exposed heat sink is designed to look cool and keep cool while generating up to 1615 delivered lumens (18W – 40° optic).
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Turbine is mounted on a non-field adjustable 10 mm stem. Projector feature a high performance spring tension swivel.
LIGHT SOURCE:
11W and 18W LED, with 0-10v (DV) or Phase (DP) dimming versions available.
STRUCTURE:
Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
20° or 40° beam angles total internal reflexion (TIR).
FINISH CHR
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.94"L: 2.94"H: 6.57"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)15 W22 W
- Lumens(Approx)1457 Lm1882 Lm
- OpticsDirectMediumFlood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSA
- Environment
- Mounting TypePendantTrack/Busway
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time4045
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
