Eureka Lighting (Acuity Inc.)
4049-10. SCOUT CEILING SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:

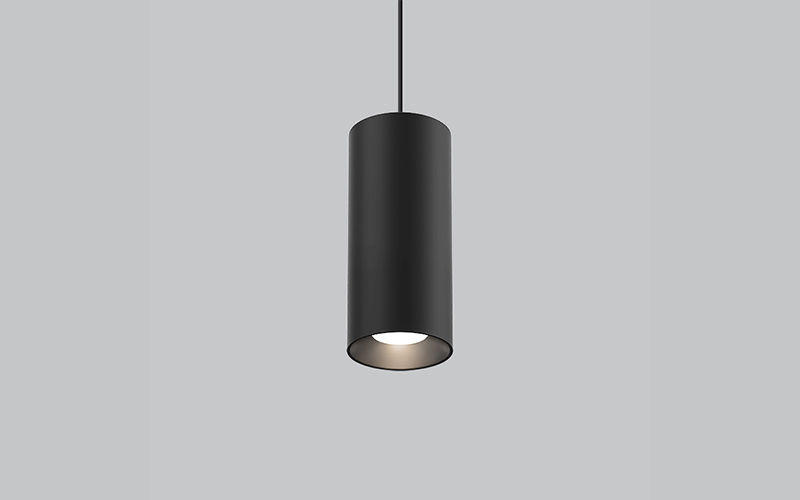

Scout is the simplest of cylinders. The exterior is clean with no visible seams or hardware. Inside, a wealth of technology remains hidden. With its 2 diameters, 3 lengths, 5 tube colors and 3 mounting options, Scout is a powerful design asset.
INSTALLATION:
Pendant version designed with a single black or white cable, easy to install and adjust on site. Also available as ceiling or wall mount.
LIGHT SOURCE:
Available with regular (LED) and high output (LED.HO), combined with standard dimming option: either phase (DP) or 0-10V (DV).
STRUCTURE:
Machined aluminum tube offered with textured black, white, light gray, navy blue or pale green finish. Scout can be specified with 2 baffle finishes: white or black.
OPTIC:
Designed with narrow, medium or wide beam angle, to meet all applications. Optical choice of clear, frosted or honeycomb lenses available.
STRUCTURE FINISH: BLKE | LGE | NBE | PGE | WHE
Scout is the simplest of cylinders. The exterior is clean with no visible seams or hardware. Inside, a wealth of technology remains hidden. With its 2 diameters, 3 lengths, 5 tube colors and 3 mounting options, Scout is a powerful design asset.
INSTALLATION:
Pendant version designed with a single black or white cable, easy to install and adjust on site. Also available as ceiling or wall mount.
LIGHT SOURCE:
Available with regular (LED) and high output (LED.HO), combined with standard dimming option: either phase (DP) or 0-10V (DV).
STRUCTURE:
Machined aluminum tube offered with textured black, white, light gray, navy blue or pale green finish. Scout can be specified with 2 baffle finishes: white or black.
OPTIC:
Designed with narrow, medium or wide beam angle, to meet all applications. Optical choice of clear, frosted or honeycomb lenses available.
STRUCTURE FINISH: BLKE | LGE | NBE | PGE | WHE
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 4.5"H: 10.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)13.6 W20 W
- Lumens(Approx)1509 Lm2070 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesCSA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
