Eureka Lighting (Acuity Inc.)

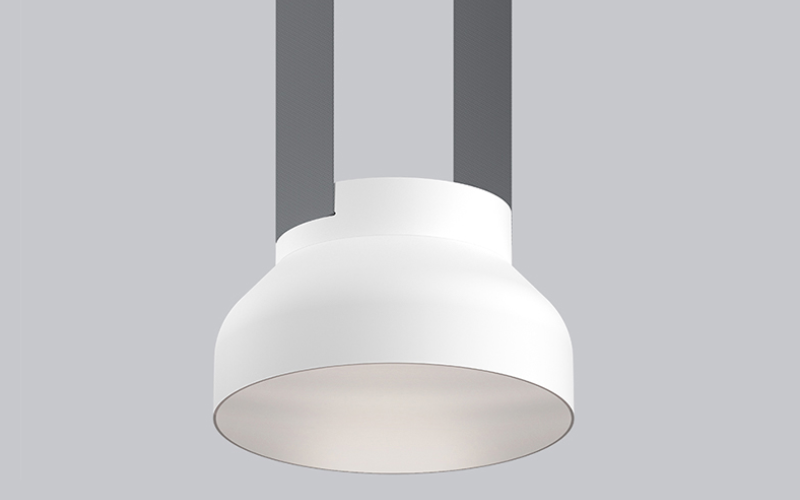

4282. TANGRAM – TACT CEILING SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
Make a striking design statement with Tangram-Tact. Define space with strong geometric lines suspended at angles you choose. All seamlessly connected with straps flowing into the fixtures as one. The thick spun shade creates a softer feel through its friendly round shape. It helps hide the light source while reducing overall glare.
LIGHT SOURCE:
A single 90 CRI COB light engine creates a powerful illumination delivering up to 3300 lumens. Choose between a honeycomb or glass optic combined with a narrow or wide beam reflector for an accurate, high-quality illumination.
INSTALLATION:
Fixture is suspended by two high quality UV resistant nylon straps housing an imperceptible flat power cable. Available in 5 eye-catching colors. Canopy and anchor distance can be specified to create a variety of strap angles. They can be positioned inside or outside as desired.
FINISH BGS | BLKS | OBS | PNS | SGS
SHADE FINISH: BLKE | WHE
Make a striking design statement with Tangram-Tact. Define space with strong geometric lines suspended at angles you choose. All seamlessly connected with straps flowing into the fixtures as one. The thick spun shade creates a softer feel through its friendly round shape. It helps hide the light source while reducing overall glare.
LIGHT SOURCE:
A single 90 CRI COB light engine creates a powerful illumination delivering up to 3300 lumens. Choose between a honeycomb or glass optic combined with a narrow or wide beam reflector for an accurate, high-quality illumination.
INSTALLATION:
Fixture is suspended by two high quality UV resistant nylon straps housing an imperceptible flat power cable. Available in 5 eye-catching colors. Canopy and anchor distance can be specified to create a variety of strap angles. They can be positioned inside or outside as desired.
FINISH BGS | BLKS | OBS | PNS | SGS
SHADE FINISH: BLKE | WHE
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12"L: 12"H: 7.3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)14.3 W25.3 W34.3 W
- Lumens(Approx)1537 Lm2554 Lm3318 Lm
- OpticsDirectMediumWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworknLight®
- Power/VoltageRemote120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
