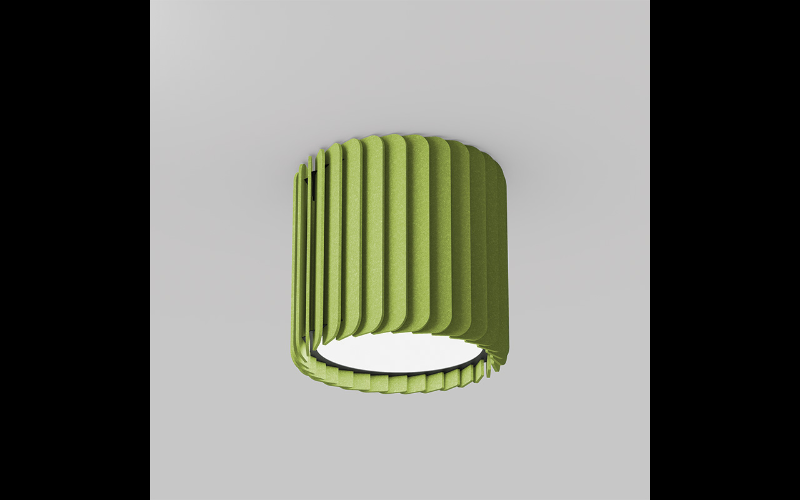

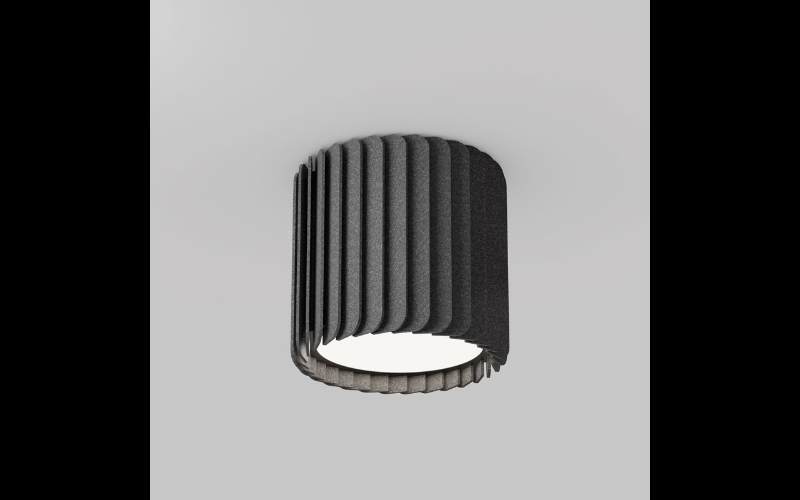

4583-25. MILL CEILING SURFACE.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
MILL is a high-performance light fixture with a simple shape punctuated by its repeated acoustic felt panels. With its four different diameters, three different lengths and its two mounting options, this fixture is versatile to suit various needs and spaces.
INSTALLATION:
Easy and quick to install surface mounted system ideal for low ceiling installations. Also available as pendant.
LIGHT SOURCE:
This surface mounted light fixture offers powerful and evenly diffused lighting with a high-power LED light source. 0-10V dimming offered.
SHADE:
The custom CNC-cut rigid felt acoustic panels are available in multiple colors. Composed of at least 50% recycled polyethylene (PET) bottles which make them recyclable and odorless.
SHADE FINISH: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
MILL is a high-performance light fixture with a simple shape punctuated by its repeated acoustic felt panels. With its four different diameters, three different lengths and its two mounting options, this fixture is versatile to suit various needs and spaces.
INSTALLATION:
Easy and quick to install surface mounted system ideal for low ceiling installations. Also available as pendant.
LIGHT SOURCE:
This surface mounted light fixture offers powerful and evenly diffused lighting with a high-power LED light source. 0-10V dimming offered.
SHADE:
The custom CNC-cut rigid felt acoustic panels are available in multiple colors. Composed of at least 50% recycled polyethylene (PET) bottles which make them recyclable and odorless.
SHADE FINISH: ABF | AWF | BBF | BOF | BTF | BYF | CHF | NBF | OBF | PGF | PREM | REF | SGF | TGF | ZFF
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 25.50"L: 25.50"H: 24.50"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)42 W54 W86 W
- Lumens(Approx)2981 Lm3719 Lm4511 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentAcoustic Absorption
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
