Eureka Lighting (Acuity Brands Lighting)

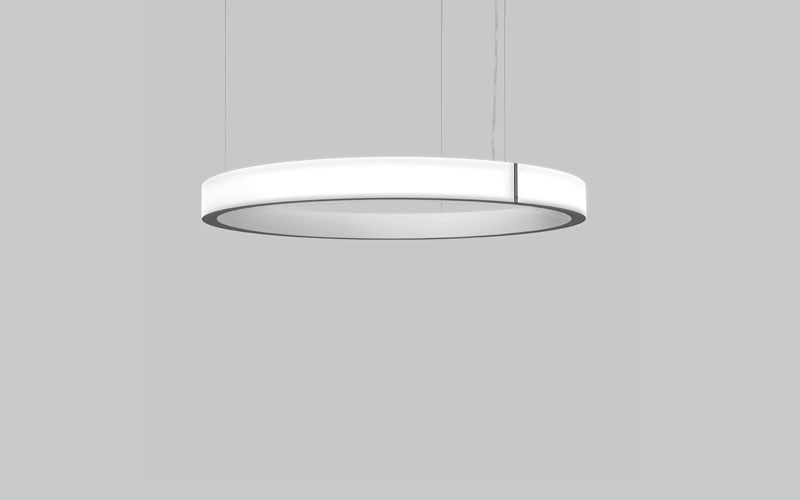

4802-54. COMPASS CEILING SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
Marrying simplicity and fineness, the Compass enhances the space with its elegantly shaped luminous halos.
INSTALLATION:
Easy to install, adjust and level using triple aircraft cables; available with straight or angled cables towards a central canopy.
LIGHT SOURCE:
Double row of custom designed light engine featuring high performance LED.
STRUCTURE:
Seamlessly finished, rolled aluminum extrusion with highly reflective matte white polyester powder coating enclosed with an extruded optical PMMA diffuser snapped in place and finished with an elegant chrome plated joiner.
STRUCTURE FINISH CHR | WHE
SHADE FINISH: WHE
Marrying simplicity and fineness, the Compass enhances the space with its elegantly shaped luminous halos.
INSTALLATION:
Easy to install, adjust and level using triple aircraft cables; available with straight or angled cables towards a central canopy.
LIGHT SOURCE:
Double row of custom designed light engine featuring high performance LED.
STRUCTURE:
Seamlessly finished, rolled aluminum extrusion with highly reflective matte white polyester powder coating enclosed with an extruded optical PMMA diffuser snapped in place and finished with an elegant chrome plated joiner.
STRUCTURE FINISH CHR | WHE
SHADE FINISH: WHE
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 51.93"L: 51.93"H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)78 W
- Lumens(Approx)7766 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
