Eureka Lighting (Acuity Brands Lighting)

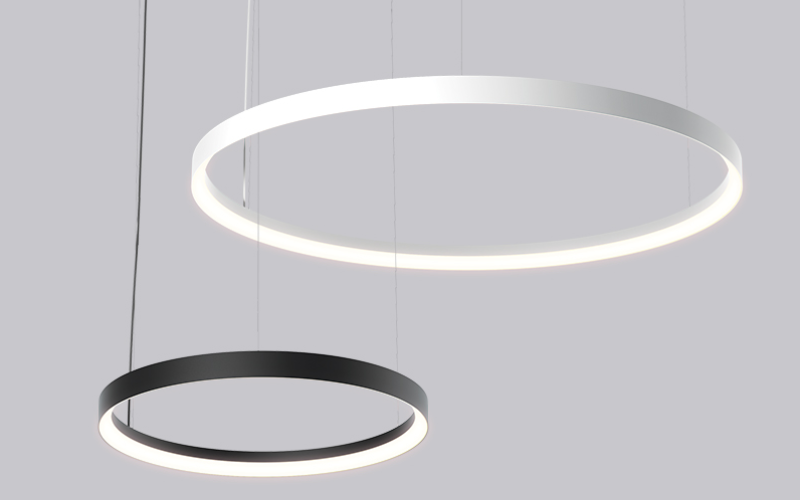

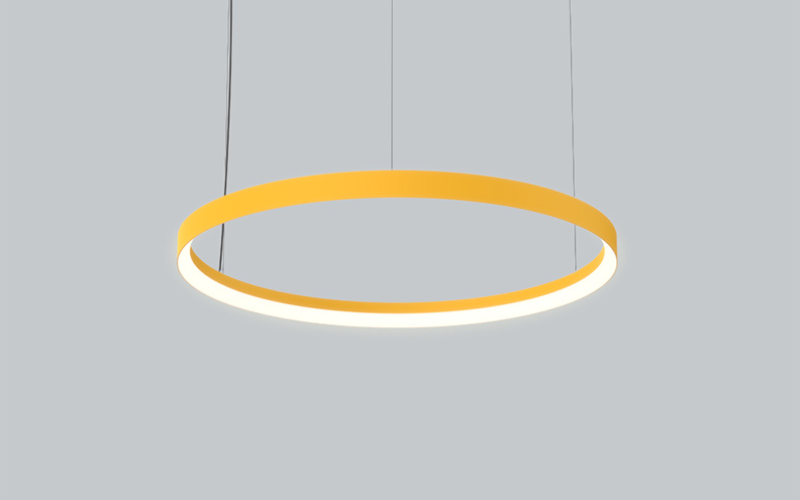

4850DI. ATOLL ROUND Ceiling Suspended TUNABLE WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:
Atoll is a high-performance ring fixture producing an evenly distributed luminous glow, both directly and indirectly. It comes in 7 different sizes and offers a range of mounting options and a choice of two indirect optics. The fixture's angled knife-edge diffuser adds a contemporary touch, allowing it to effortlessly fill spaces with simplicity and elegance.
INSTALLATION:
Whether wall or ceiling mounted, Atoll has a simple 3 points mounting system (6 points for 4850-90 and 8 points for 4850-120.)
LIGHT SOURCE:
Custom designed and manufactured light engine featuring high performance discreet LEDs. Tunable white and emergency option available.
CONSTRUCTION:
Seamlessly finished, rolled aluminum extrusion profile paired with high efficiency reflectors and a flexible silicone diffuser.
Finish BLKE | MATCH | WHE
Shade Finish: AYE | BLKE | BRE | CBE | CPE | DBE | GGE | HGE | LNE | NBE | SBE | SGE | STE | WHE
Atoll is a high-performance ring fixture producing an evenly distributed luminous glow, both directly and indirectly. It comes in 7 different sizes and offers a range of mounting options and a choice of two indirect optics. The fixture's angled knife-edge diffuser adds a contemporary touch, allowing it to effortlessly fill spaces with simplicity and elegance.
INSTALLATION:
Whether wall or ceiling mounted, Atoll has a simple 3 points mounting system (6 points for 4850-90 and 8 points for 4850-120.)
LIGHT SOURCE:
Custom designed and manufactured light engine featuring high performance discreet LEDs. Tunable white and emergency option available.
CONSTRUCTION:
Seamlessly finished, rolled aluminum extrusion profile paired with high efficiency reflectors and a flexible silicone diffuser.
Finish BLKE | MATCH | WHE
Shade Finish: AYE | BLKE | BRE | CBE | CPE | DBE | GGE | HGE | LNE | NBE | SBE | SGE | STE | WHE
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24.26"36.29"48.33"60.36"72.39"90.8"120"L: 24.26"36.29"48.33"60.36"72.39"90.8"120"H: 2.93"
- Light SourceLED
- CCT/ColorTunable White
- CRI80
- Watt(Approx)19.3 W39.6 W
- Lumens(Approx)1884 Lm2728 Lm3607 Lm5223 Lm
- OpticsDirectDirect/IndirectGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time4850DI-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
