Eureka Lighting (Acuity Brands Lighting)

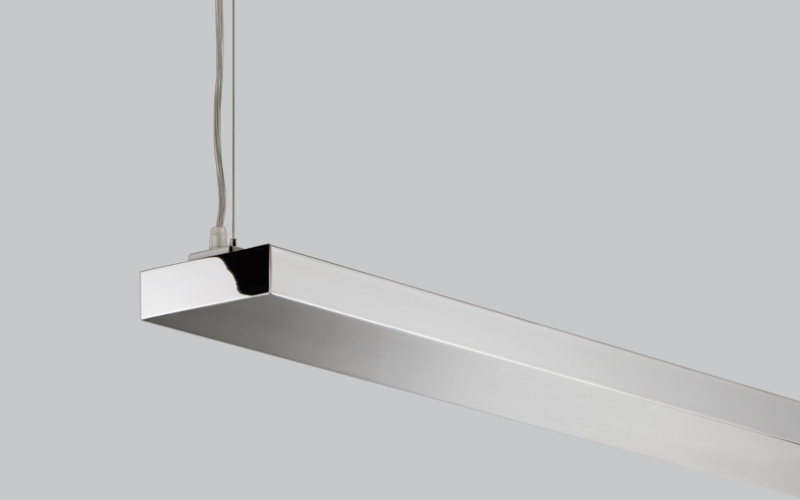

74132-96. DUSK CEILING SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
DESIGN:

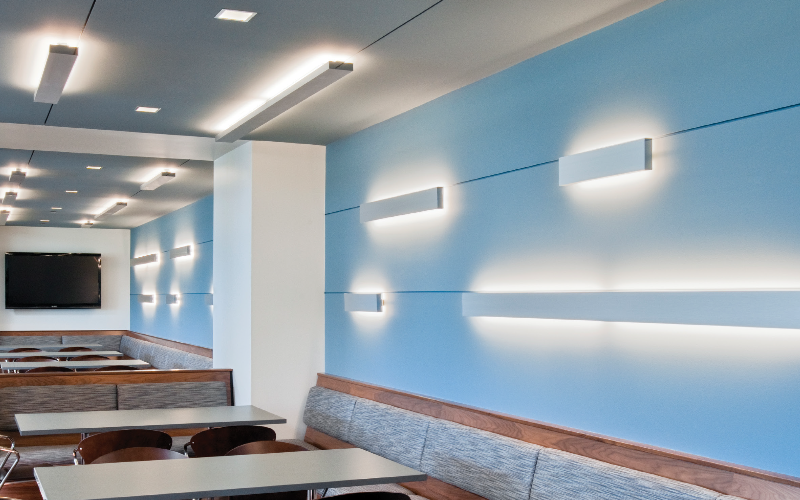

An architectural staple with a flash of chrome that offers soft indirect light in 2 lengths.
INSTALLATION:
Easy to install, adjust and level aircraft cable mounting.
LIGHT SOURCE:
LED and T5 HO light sources. Dimming and EM available.
STRUCTURE:
Structure in extruded aluminum & die-stamped steel. Polyester powder housing and chrome end caps.
REFLECTOR:
Highly reflective powder coated die-formed steel reflectors.
STRUCTURE FINISH M G | SAA | WH
An architectural staple with a flash of chrome that offers soft indirect light in 2 lengths.
INSTALLATION:
Easy to install, adjust and level aircraft cable mounting.
LIGHT SOURCE:
LED and T5 HO light sources. Dimming and EM available.
STRUCTURE:
Structure in extruded aluminum & die-stamped steel. Polyester powder housing and chrome end caps.
REFLECTOR:
Highly reflective powder coated die-formed steel reflectors.
STRUCTURE FINISH M G | SAA | WH
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5"L: 93.10"H: 1.73"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)33 W
- Lumens(Approx)3292 Lm
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSA
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
