Electrix Illumination

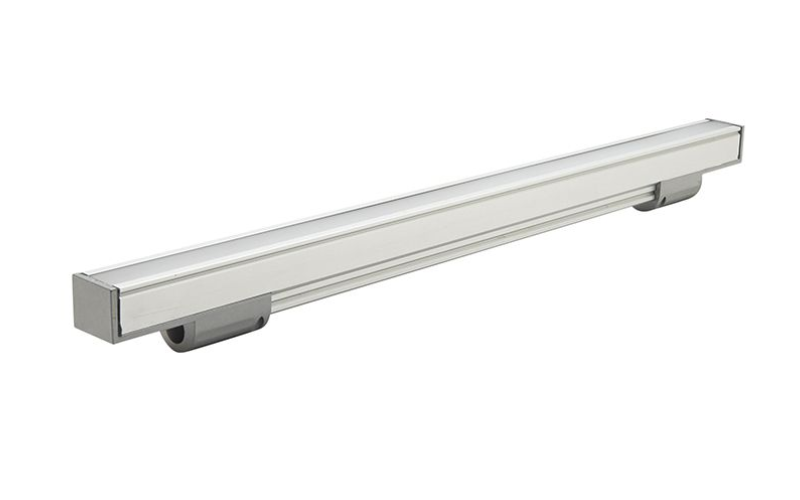

L140W. LuminLine Exterior LED Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The most versatile of the LumiLine small profile products. Five mounting options and three beam angles make this the ideal luminaire for down lighting under canopies and porticos. Choose the tight, 5° optic for downlight exterior grazing. Broader distributions fill exterior valences and provide downlight accents. Micro louver option on 60° degree lens provides glare control for shallow sight lines where luminaire is partially exposed.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/4"L: 10 3/8"20 1/2" 30 1/2"40 1/2"H: 1 1/2"
- Light SourceLED
- CCT/Color3500K4000K
- CRI80
- Watt(Approx)5 W/Ft10 W/Ft
- Lumens(Approx)199 Lm/Ft398 Lm/Ft
- OpticsDirectNarrowWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume Premier 3-wire (L3D03W)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentIP65
- Mounting TypeSurface
- Housing
- Housing Depth
