Electrix Illumination

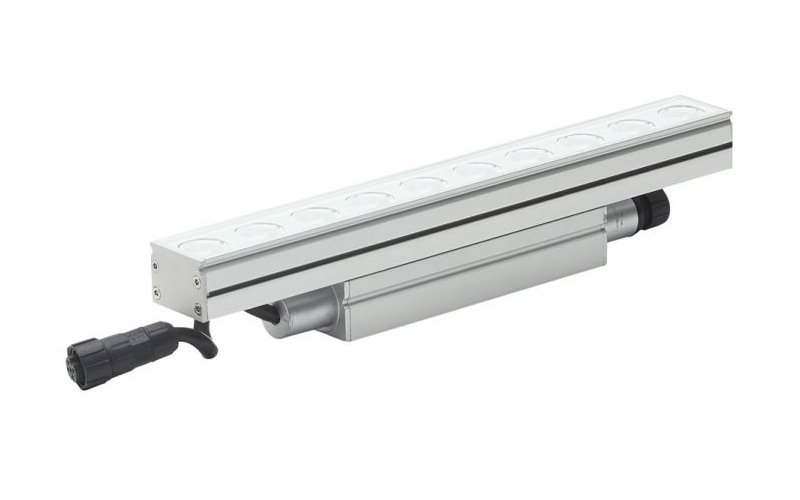

L240W. Wet Location Linear LED Luminare.
Configure
Add to project



RESOURCES
DESCRIPTION
The L240W delivers light sculpting to exteriors to attract attention, direct traffic and enhance architectural features. Highlight unique architectural details on building crowns, cornices, facades, niches and arches with its array of beam angles.
Its design allows for the luminaire to be continuous and directly linked together — up to 80 feet on a single circuit at 277V — preventing scalloping, hotspots and shadowing.
LumiLine’s L240W offers symmetric 5° through 90° and asymmetric distribution. Range of applications include: linear wash, graze, accent uplight and accent downlight. Choice of distributions offers high luminosity while minimizing spill light, glare and energy load.
Its design allows for the luminaire to be continuous and directly linked together — up to 80 feet on a single circuit at 277V — preventing scalloping, hotspots and shadowing.
LumiLine’s L240W offers symmetric 5° through 90° and asymmetric distribution. Range of applications include: linear wash, graze, accent uplight and accent downlight. Choice of distributions offers high luminosity while minimizing spill light, glare and energy load.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 2/5"L: 1247 3/4"H: 2 9/32"
- Light SourceLED
- CCT/Color3000K
- CRI80
- Watt(Approx)10.7 W/Ft
- Lumens(Approx)1030 Lm/Ft
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentIP65IP68
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
