F-L Lighting
PEAK 320 T2.
Configure
Add to project
RESOURCES
DESCRIPTION

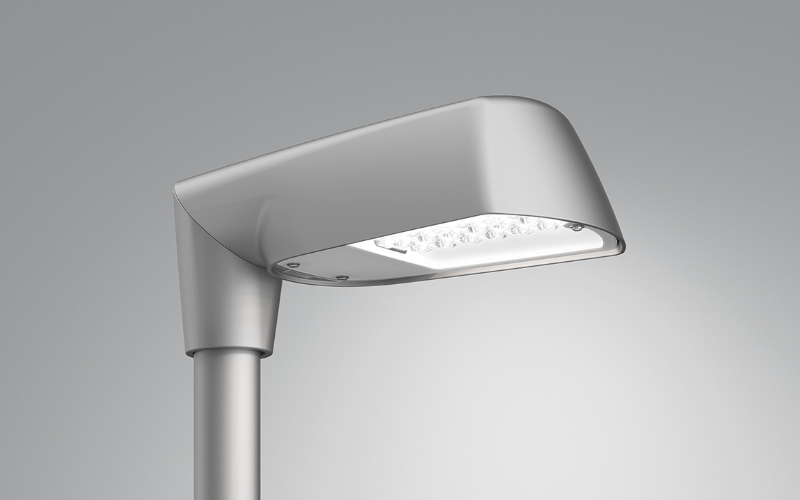

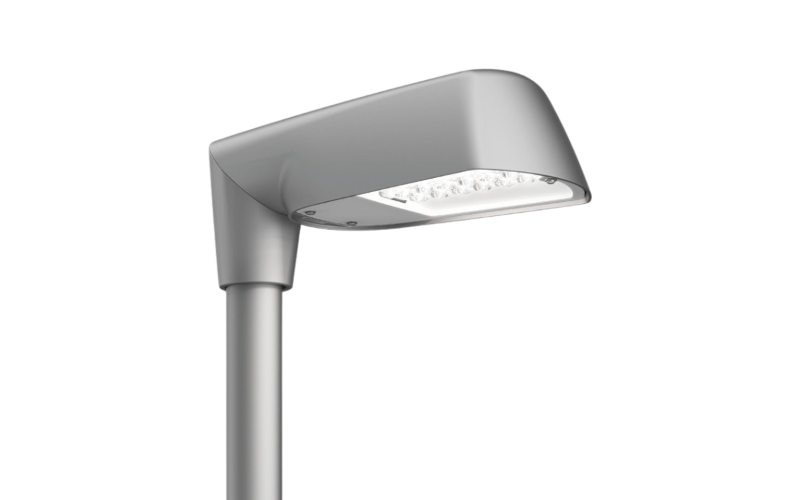

Peak 320 is a multifunctional luminaire designed to set new standards with a simple and flexible design that ensures installations for both pole and arm.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.19"L: 16.8"H: 6.97"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)13 W20 W28 W42 W
- Lumens(Approx)1364-1521 Lm2168-2415 Lm2914-3248 Lm4123-4596 Lm
- OpticsDirectType II
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP66Corrosion Resistant
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePEAK-320-T2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
