F-L Lighting

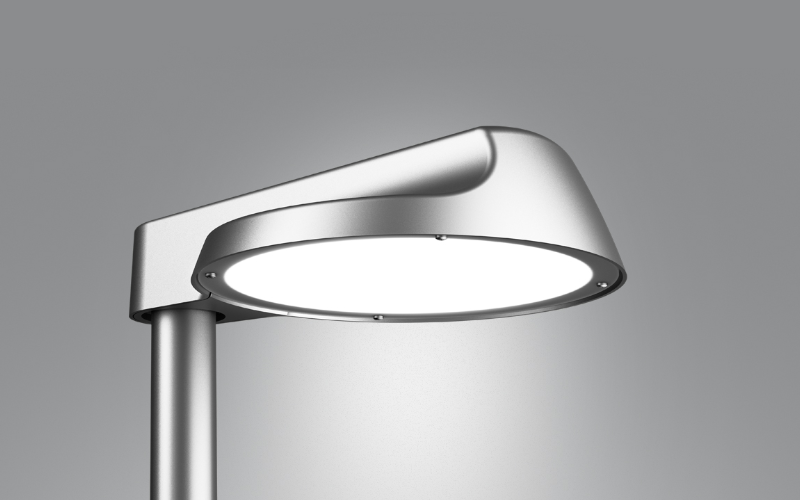

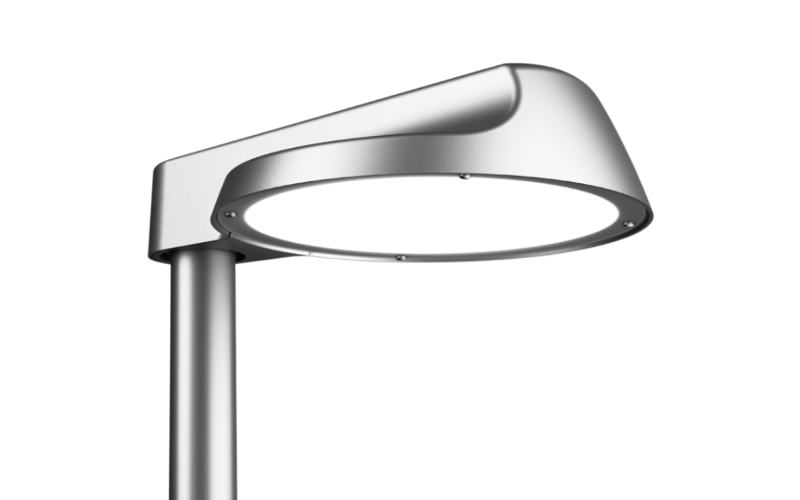

PEAK 380 T4.
Configure
Add to project
RESOURCES
DESCRIPTION
Peak 380 is available in two different versions for vertical pole and horizontal arm. The same strong and characteristic design with optimized and simplified adaptions for pole/arm.
The Peak luminaires come with LED with different types of lenses.
The Peak luminaires come with LED with different types of lenses.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14.96"L: 19.6"H: 4.49"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)41 W71 W82 W105 W
- Lumens(Approx)4674-5212 Lm7678-8564 Lm
- OpticsDirectType IV
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP66Corrosion Resistant
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePEAK-380-2XFF-T4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
