FC Lighting

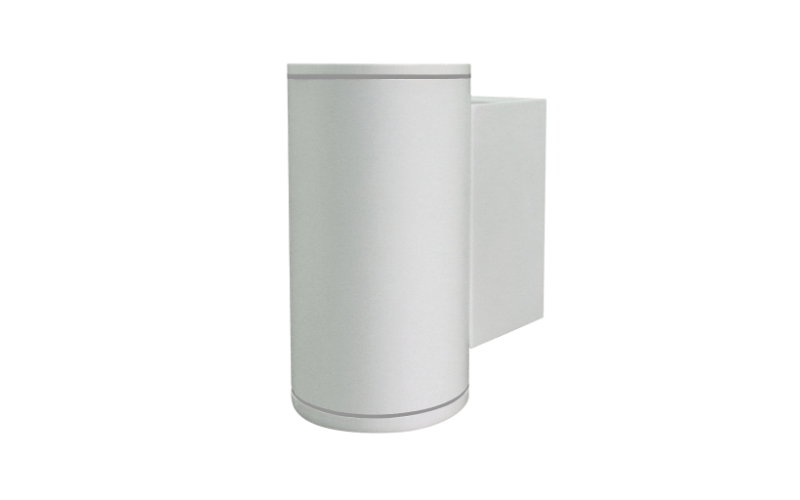

FCC400R. 4.5'' Round Wall Up/Down Cylinder Remote.
 Configure
 Add to project
DESCRIPTION
The FCC400 exterior up/down wall cylinders are a 4″ round diameter fixture. We’ve given it a modern yet timeless look. We support this application by using marine grade, corrosion resistant, heavy walled, high pressure extruded and die cast aluminum construction. As well as, a die cast back mounting plate. Furthermore, installers can mount this fixture directly to a standard recessed junction box. Our standard optic Lens is 1/4″ thick, beveled tempered clear heat resistant glass. Finally, the LED reflector we use is precision formed, semi-specular aluminum, designed for maximum reflectivity. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.5"
    L: 4.5"
    H: 10.95"12.95"14.95"16.95"18.95"20.95"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    93
  • Watt(Approx)
    5 W35 W
  • Lumens(Approx)
    500 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
  • Optics
    IndirectDirect/IndirectNarrowMediumWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    RemoteUNV 120-277V347V
  • Integral Emergency
  • Lumen Maintenance
    70000 h
  • Certificates
    ETLMade in USAT24*RoHS
  • Environment
    IP65
  • Mounting Type
    Wall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
