FC Lighting

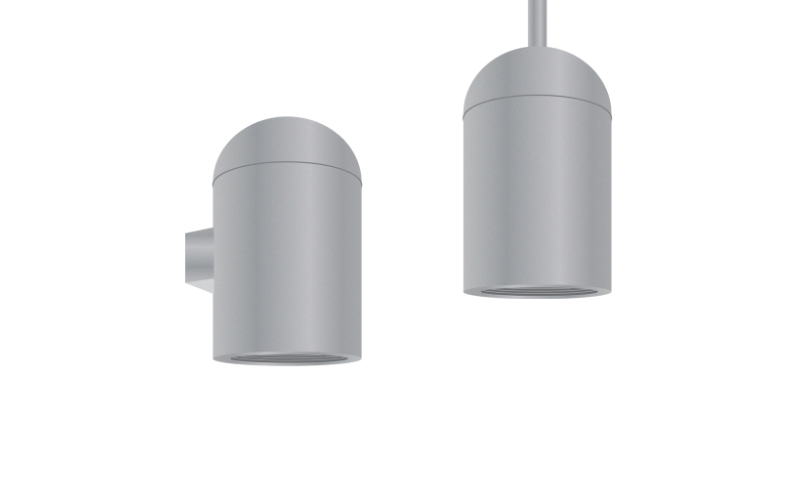

FCC4300. 9'' Round Down Cylinder.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCC4300 Series Cylinders are U.L. listed for wet locations. Housing, arm and canopy are marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction. The lens is 1/8” thick tempered, heat resistant, clear glass standard, sandblasted or prismatic lens optional. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13"L: 8.75"H: 13.5"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI93
- Watt(Approx)12 W24 W36 W
- Lumens(Approx)1000 Lm2000 Lm3000 Lm
- OpticsDirectNarrowFloodWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USARoHS
- EnvironmentIP65Corrosion Resistant
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCC4300
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
