FC Lighting

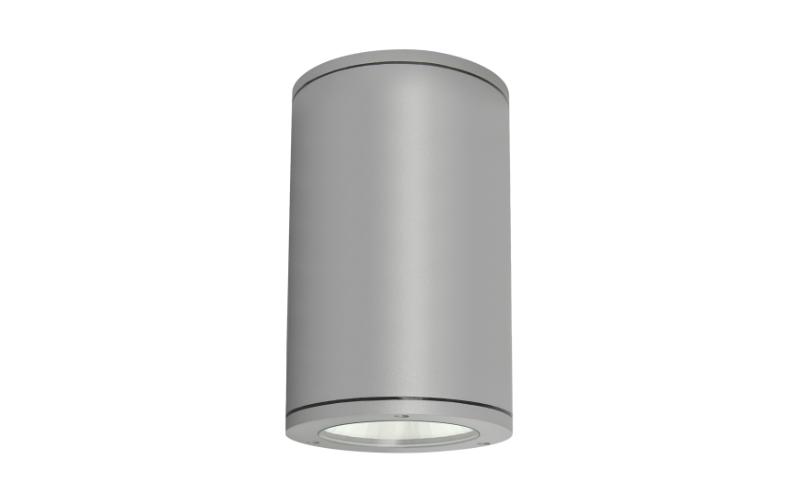

FCC600. 6” Round Down Cylinders Standard.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCC600 cylinders are UL listed for wet locations in down position only. Marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum and extruded aluminum construction. Lens is 1⁄4” tempered clear, heat resistant standard. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available. Mounts directly to standard outlet box. Optional wall or ceiling emergency test switch, also available fixture mounted.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.3"L: 6.3"H: 8.95"10.95"12.95"14.95"16.95"18.95"20.95"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)6.4 W10 W14 W19 W25 W30 W36 W42 W48 W53 W59 W65 W
- Lumens(Approx)500 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm5000 Lm5500 Lm6000 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentIP65
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCC600
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
