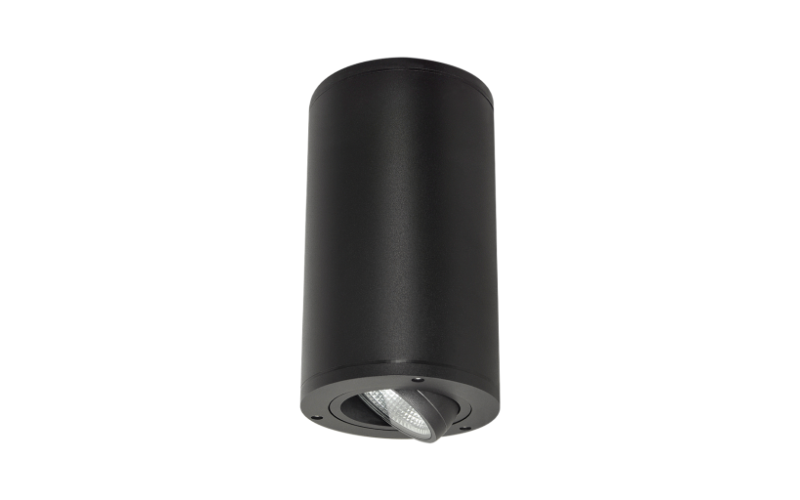

FCC6GA. 6'' Cylinder Gimbal Ring rotates & tilts.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
FCC6GA is a 6” round outdoor cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV.FCC6GA has exterior heavy-walled, extruded aluminum housing with die-cast lens ring and cap with stainless steel hardware. The adjustable Gimbal ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050″ hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gaskets to seal out contaminants. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.3"L: 6.3"H: 10.95"12.9514.95"16.9518.95"20.95"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)23 W28 W33 W34 W
- Lumens(Approx)2500 Lm3000 Lm3500 Lm4000 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentIP65Corrosion Resistant
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
