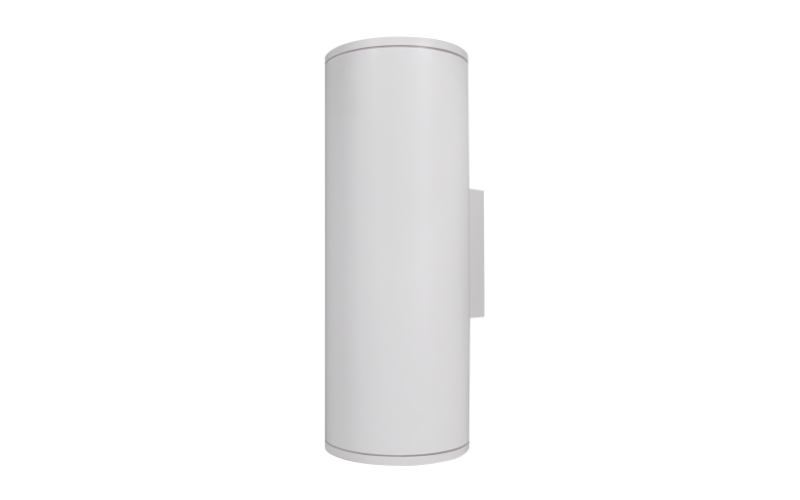

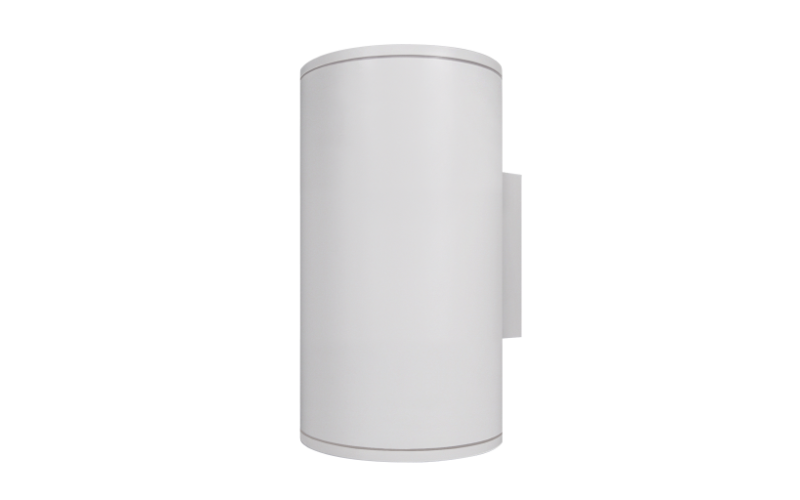

FCC800. 8” Round Down Cylinders Remote.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCC800 round cylinders are U.L. listed for wet locations in down position. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with die cast back mounting plate. Lens is 3/8″ thick tempered, clear, heat resistant. Reflector is precision formed semi-specular aluminum formed for maximum reflectance. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available. Mounts directly to standard outlet box. Optional wall or ceiling emergency test switch, also available fixture mounted.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.35"L: 7.35"H: 12.95"14.95"16.95"18.95"20.95"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93 83
- Watt(Approx)18 W67 W
- Lumens(Approx)1000 Lm2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm5000 Lm5500 Lm6000 Lm6500 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USAT24*RoHS
- EnvironmentIP65
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCC800-R
—
