FC Lighting

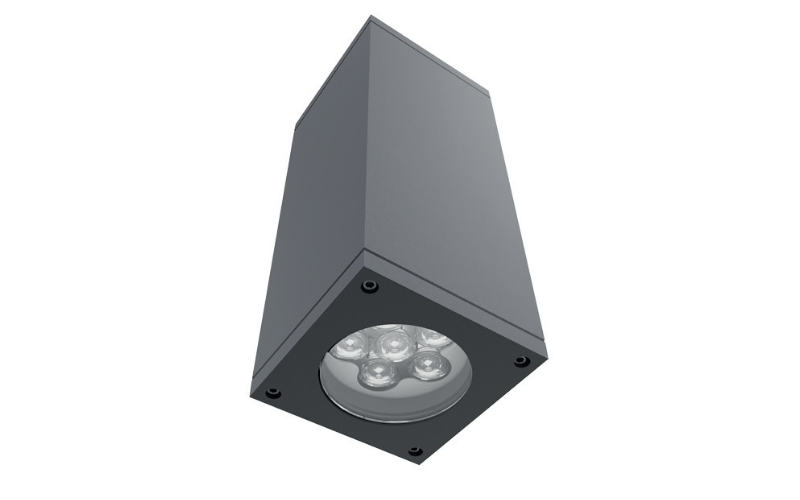

FCCSQ400-RGBW. 4" Square Down Cylinder.
 Configure
 Add to project
DESCRIPTION
FCCSQ400-RGBW exterior down light cylinder brings dynamic, color-changing capability to any surface or façade. This 4-inch square diameter luminaire features a clean, modern design to seamlessly blend into any installation. Constructed of marine-grade, corrosion-resistant extruded and die-cast aluminum, and ¼-inch thick tempered glass lens, the FCCSQ400-RGBW is designed for performance in any environment. Standard polyester powder coat finishes include black, bronze, graphite grey, silver and white with custom or RAL colors also available.

FCCSQ400-RGBW utilizes our core technologies and four available beam options to produce and control billions of colors, and tunable white capability, accurately and consistently. Bring attention and engagement to your next project with quality and performance from FC Lighting!
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.5"
    L: 4.5"
    H: 10.95"12.95"14.95"16.95"18.95"20.95"
  • Light Source
    LED
  • CCT/Color
    Tunable White & ColorsRGBW
  • CRI
  • Watt(Approx)
    15 W
  • Lumens(Approx)
  • Optics
    DirectNarrowFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%DMX
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    70000 h
  • Certificates
    ETLMade in USARoHS
  • Environment
    IP65
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
