FC Lighting

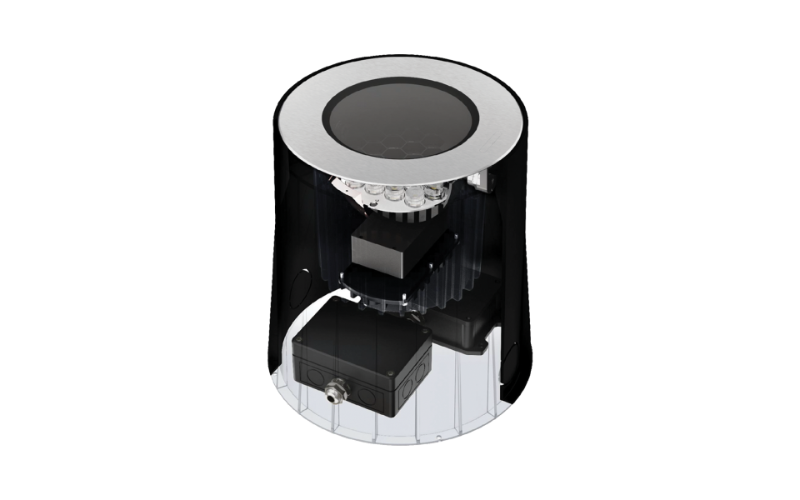

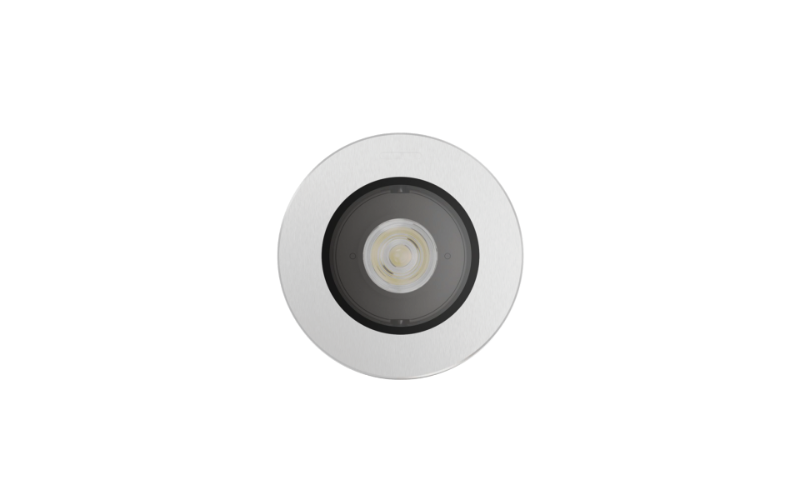

FCD10R-COB. 10'' Round Recessed Inground.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
FCD10R is a World Class 10-inch round, recessed luminaire designed to meet the challenges of inground installation. With multiple beam options and an adjustable array, the FCD10R is perfect for all uplighting, wall washing and highlight applications. The luminaire is rated IP68 for ingress, IK10 for impact and 5000 kilogram drive over, making it ideal for any rugged environment. The unique design utilizes connectors for fast connection of power and control, and allows simple, fast alignment and aiming.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.52"L: 12.52"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)36 W
- Lumens(Approx)5000 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETL
- EnvironmentIP68
- Mounting TypeIn-GradeGround
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCD10R-COB
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
