FC Lighting

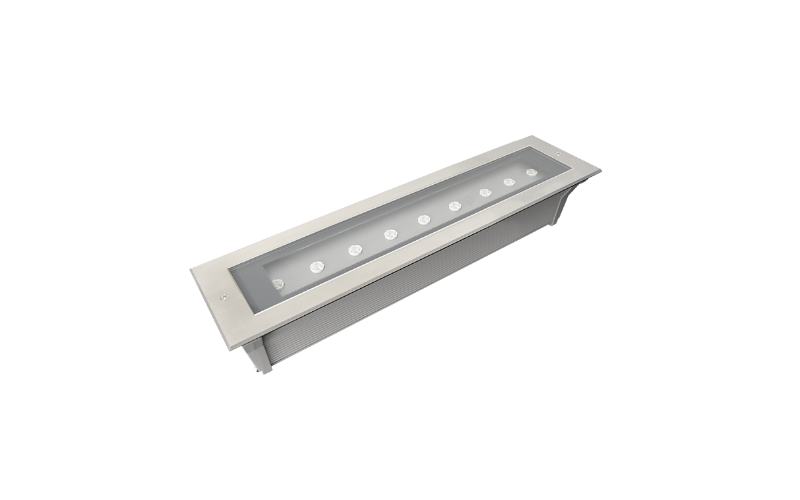

FCD7000. 2ft Linear Inground Stainless Steel Trim.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCD7000 inground fixture is ETL listed for wet locations. Housing is marine grade, corrosion resistant, heavy walled, high pressure aluminum construction with 316 machined brushed stainless steel trim (aluminum well housing included). In addition, the lens is impact resistant, clear, tempered glass. Reflector is precision formed semi-specular aluminum for maximum reflectance with fluorescent lamp. Integral power supply comes standard. Consult factory for dimming and any single color options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.75"L: 25.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI84 90
- Watt(Approx)11.4 W
- Lumens(Approx)1200 Lm
- OpticsDirectGrazingFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLT24*RoHS
- EnvironmentIP67Corrosion Resistant
- Mounting TypeIn-GradeConcrete
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCD7000
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
