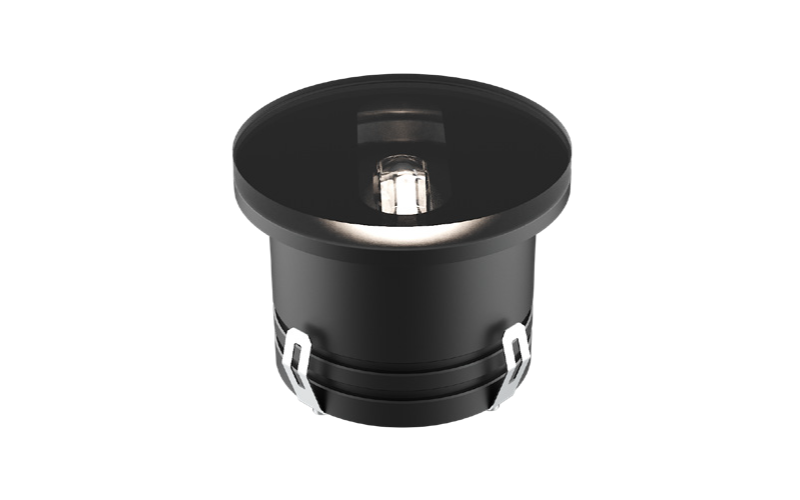

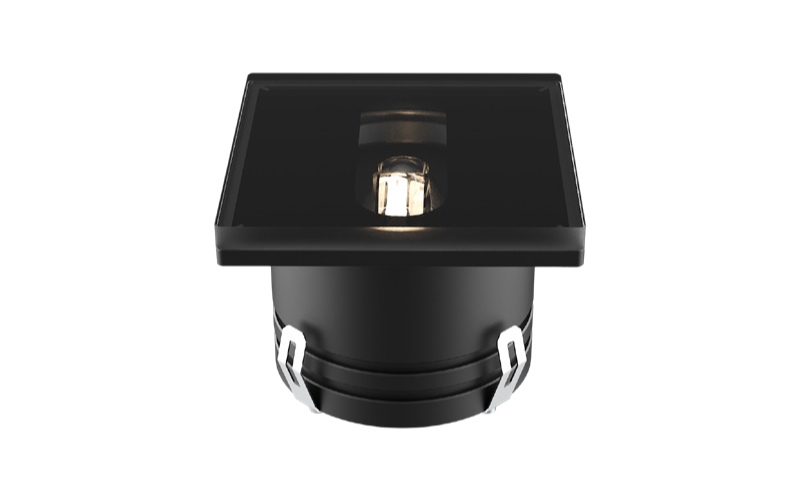

FC Lighting (Lighting Innovations)
FCI. Window Trimless Inground.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Performance
100 lm - 150 lm (9W Max)
Mounting Options
Slips into PVC housing and is pressed in to create a seal.
Power Input
24 VDC
UNV 120 - 277 VAC
Protection
IP66, IP67, IP68 and IP69K Rated
Warranty
5-Year Limited Warranty
100 lm - 150 lm (9W Max)
Mounting Options
Slips into PVC housing and is pressed in to create a seal.
Power Input
24 VDC
UNV 120 - 277 VAC
Protection
IP66, IP67, IP68 and IP69K Rated
Warranty
5-Year Limited Warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.15"3.86"L: 3.15"3.86"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)5 W7 W
- Lumens(Approx)100 Lm150 Lm
- OpticsDirectGrazingAdjustable Optics
- Adjustable
- DimmingDim to 1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLRoHS
- EnvironmentIP66IP67IP69K High-Pressure/Steam-Jet CleaningIP68
- Mounting TypeIn-GradeConcrete
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCI-WIN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
