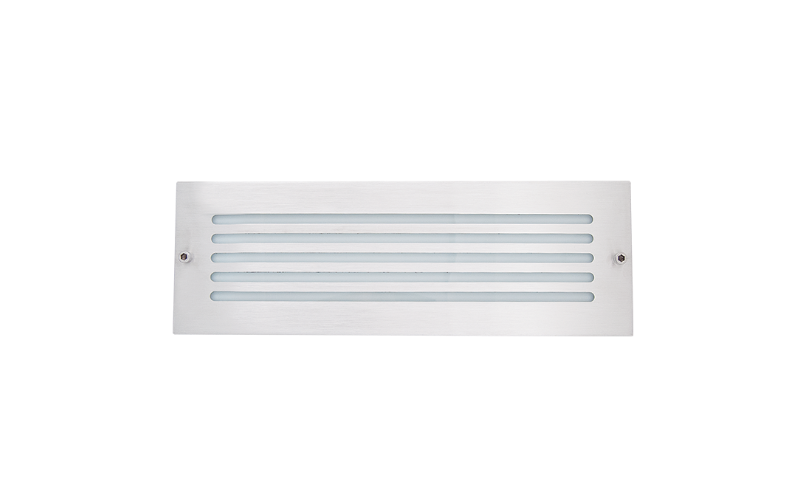

FCSL110. Brick Light w/316 Stainless Steel Faceplate.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCSL110 Step Light is U.L. listed for interior and exterior wet locations. Faceplate is marine grade 316 stainless steel. Housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with (2) 7/8″ KO. Lens is 1/8″ thick, heat resistant, tempered white glass. The brick light fits perfectly into any standard brick masonry. The louvered faceplate moderately lights the surface. Add elegance and longevity to your walkway or stairwell with a long lasting stainless steel fixture.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 9.5"H: 2.83"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85
- Watt(Approx)10 W
- Lumens(Approx)210 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLADA
- EnvironmentIP65Corrosion Resistant
- Mounting TypeWall RecessedConcreteStone/Tile
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
FCSL110
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
