FCSL1140. 10'' Rectangular Directional Step Light.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

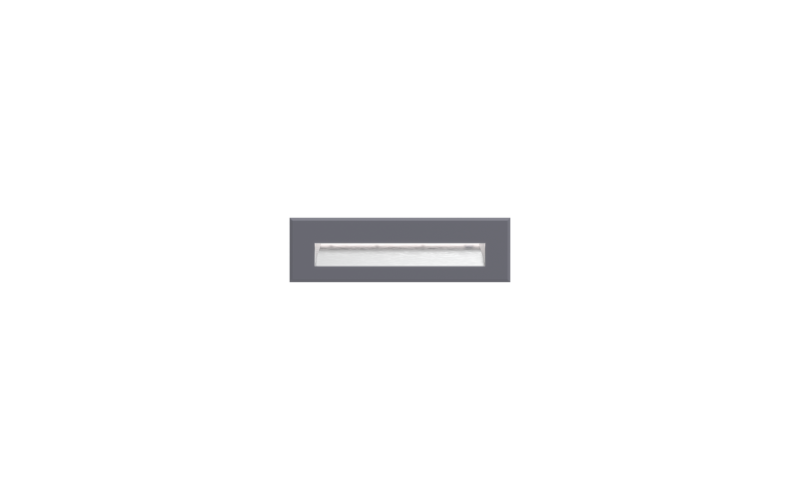

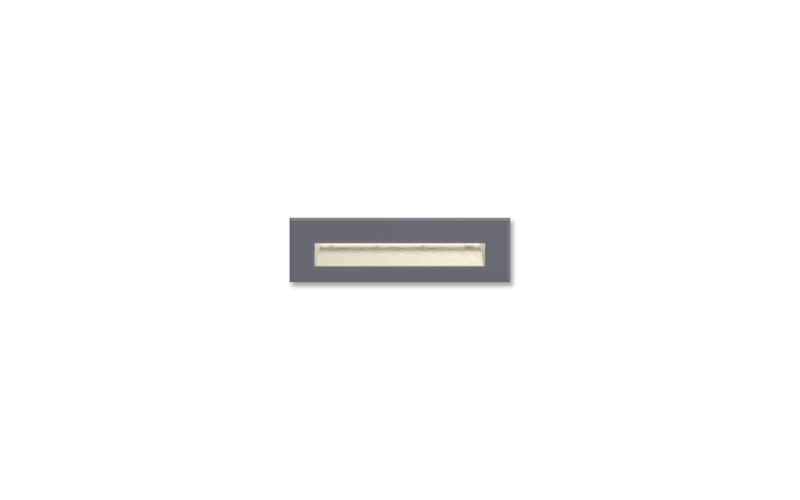

FCSL1140 10” exterior die-cast aluminum step light with heavy-walled, die-cast faceplate, for masonry or drywall construction. IP66 rated for damp, dry or wet locations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 10"H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI85
- Watt(Approx)7 W13 W
- Lumens(Approx)700 Lm1300 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance72000 h
- CertificatesETL
- EnvironmentMarineCorrosion ResistantIP68
- Mounting TypeWall RecessedDrywallConcrete
- Housing
- Housing Depth
