FC Lighting
FCSL2001. 13'' Open Faced Rectangular Step Light.
 Configure
 Add to project
DESCRIPTION

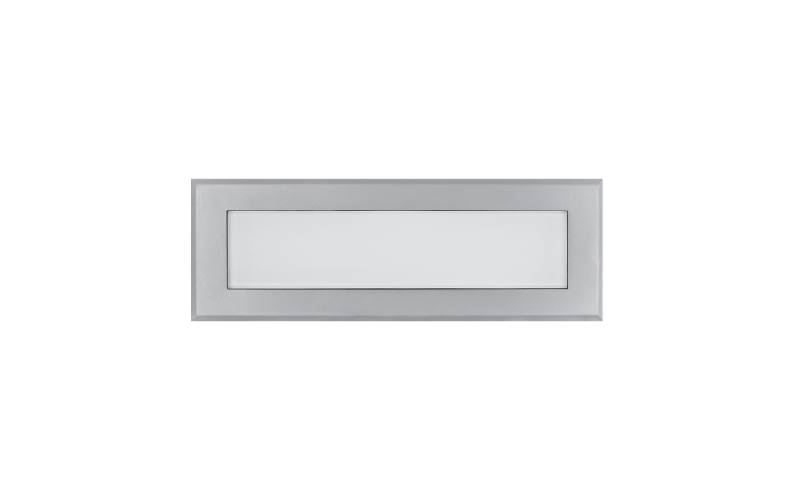

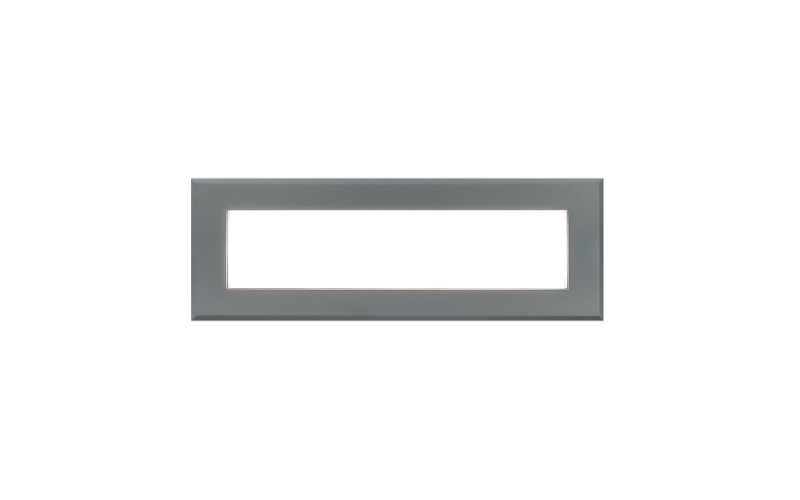

FCSL2001 13” exterior die-cast aluminum step light with heavy walled die-cast open faceplate, for masonry or drywall construction. IP68 rated for damp, dry or wet locations. The housing is marine grade, corrosion resistant, heavy walled, high pressure, die-cast aluminum with a snap-in Screwless faceplate standard. Optional captive recessed stainless steel tamper resistant screws (TRS)(torx pin heads w/tool provided). It has a tempered glass lens. The optical/driver unit is rated for dry, damp or wet locations. All seals are injection molded silicone. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    L: 13"
    H: 4.5"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KYellow/AmberRedBlue
  • CRI
    85
  • Watt(Approx)
    7 W15 W14 W
  • Lumens(Approx)
    428 Lm857 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V
  • Integral Emergency
  • Lumen Maintenance
    70000 h
  • Certificates
    ETL
  • Environment
    Corrosion ResistantIP68
  • Mounting Type
    Wall RecessedConcreteStone/Tile
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
