FCSL2040. 13'' Rectangular Directional Step Light.
Configure
Add to project



RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

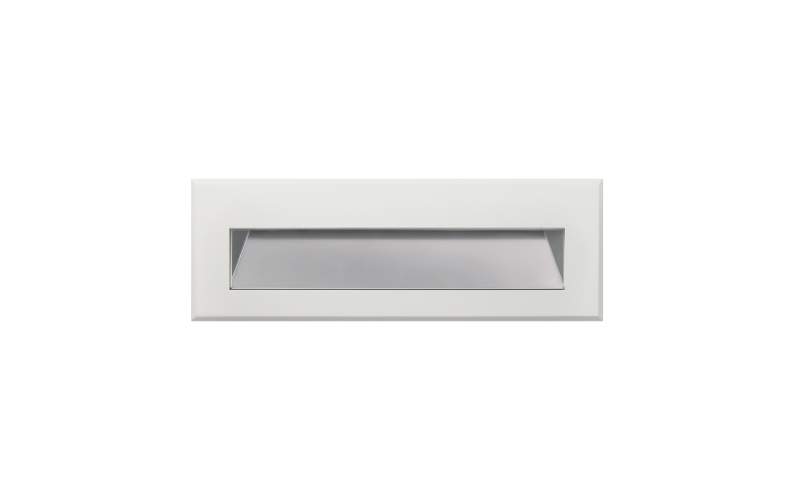

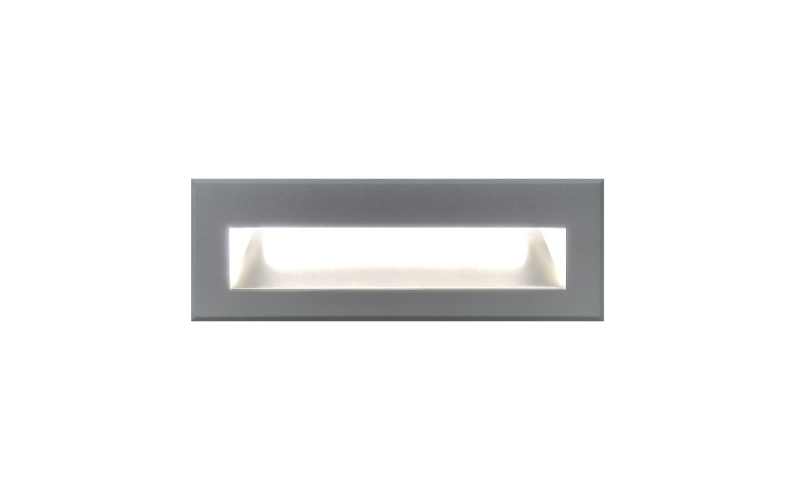

FCSL2040 13” exterior die-cast aluminum step light with heavy walled die-cast faceplate, for masonry or drywall construction. Rated for damp, dry or wet locations. The housing is marine grade, corrosion resistant, heavy walled, high pressure, die-cast aluminum with a snap-in Screwless faceplate standard. Optional captive recessed stainless steel tamper resistant screws (TRS)(torx pin heads w/tool provided). Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 13"H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/AmberRedBlue
- CRI85
- Watt(Approx)3.6 W6.4 W9.5 W
- Lumens(Approx)466 Lm786 Lm1037 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETL
- EnvironmentCorrosion ResistantIP68
- Mounting TypeWall RecessedConcreteStone/Tile
- Housing
- Housing Depth
