FC Lighting

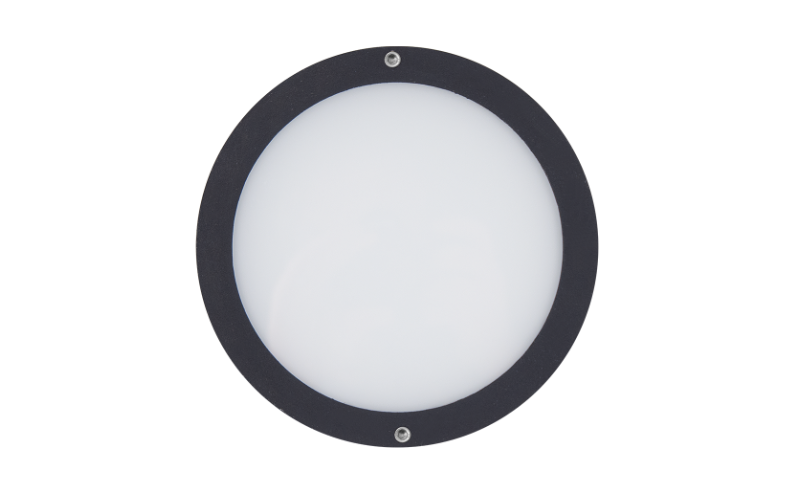

FCSL401. Round Exterior Die-Cast Aluminum Step Light with Die-Cast Faceplate.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCSL401 Step Light is U.L. listed for interior and exterior wet locations. The FCSL Series housing and faceplates are marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum construction with (2) 7/8″ KO. Lens is 1/8″ thick, heat resistant white glass. Precision formed, reflector for maximum reflectance. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 7.2"H: 7.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85
- Watt(Approx)18 W
- Lumens(Approx)950 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLADAT24*
- EnvironmentIP65
- Mounting TypeWall RecessedConcreteStone/Tile
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCSL401
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
