FCSL407. Round Exterior Die-Cast Aluminum Step Light with Stainless Steel Faceplate & Lens Guard.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

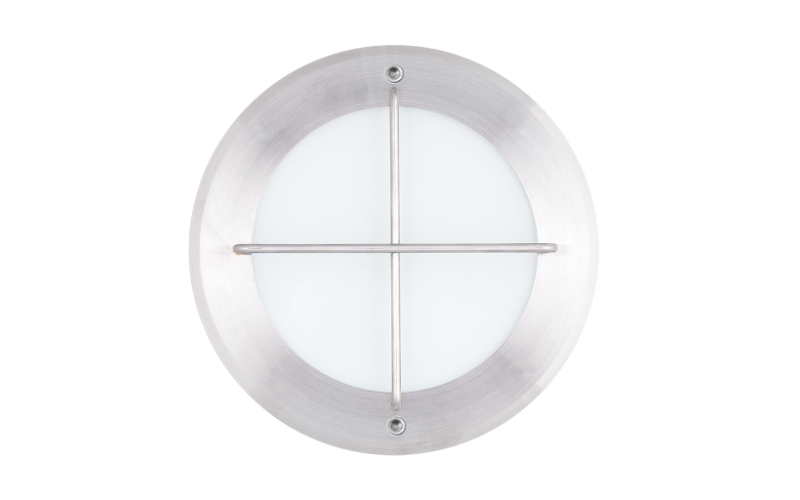

The FCSL407 Step Light is a 7.125″ round stainless steel fixture with protective guard over opal lens. It’s U.L. listed for interior and exterior wet location applications. The housing is marine grade, corrosion resistant, heavy walled, high pressure die cast aluminum, that’s constructed with (2) 7/8″ KO. Back boxes can be used for concrete pour and masonry applications. We offer the back boxes to be shipped early for concrete pour application setup. The marine grade stainless steel face plate gives a polished look while providing a long lasting finish and protective lens guard. The white lens is 1/8″ thick, tempered, heat resistant glass and adds a softer illumination reducing glare.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 7.125"H: 7.125"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85
- Watt(Approx)18 W
- Lumens(Approx)600 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETL
- EnvironmentIP65
- Mounting TypeWall RecessedConcreteStone/Tile
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
