FC Lighting

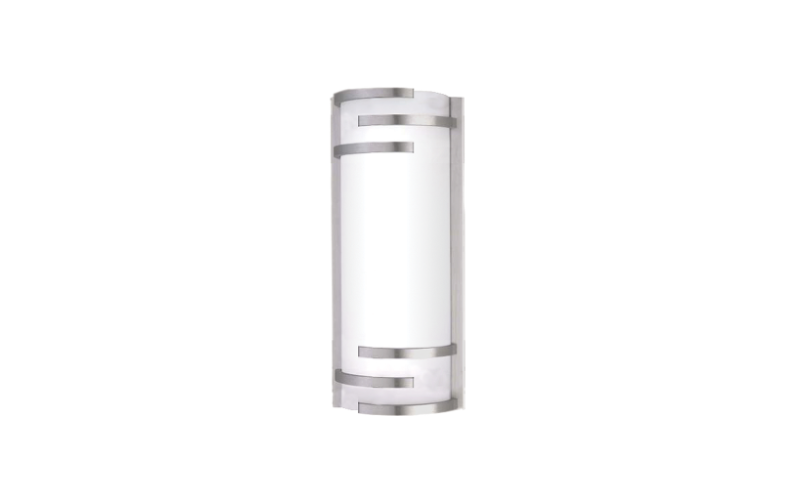

FCWS7168. Shadow-Free, Half Round Exterior Decorative Wall Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The FCWS7168 Exterior Décor fixture is ETL listed, US and CA. Meets ADA requirements. Housing is marine grade, corrosion resistant, heavy gauge aluminum. Easy access maintenance. Impact resistant, UV stabilized, white, polycarbonate diffuser. See cut sheet for available finishes and Face options: A, B, D. Mounts to standard outlet box. In masonry, use 4 x .250″ x .750″ screws with lead anchors. Standard polyester powder coat finishes include black, bronze, silver, white or brushed aluminum with custom or RAL colors also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 7.25"H: 18.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85 90
- Watt(Approx)14 W20 W28 W45 W70 W
- Lumens(Approx)1200 Lm1800 Lm2500 Lm4000 Lm6200 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%ELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLADAT24*
- EnvironmentIP67Corrosion Resistant
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCWS7168
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
