FCWV. VEIL 2.5''W Aluminum Low-Profile Luminaire.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

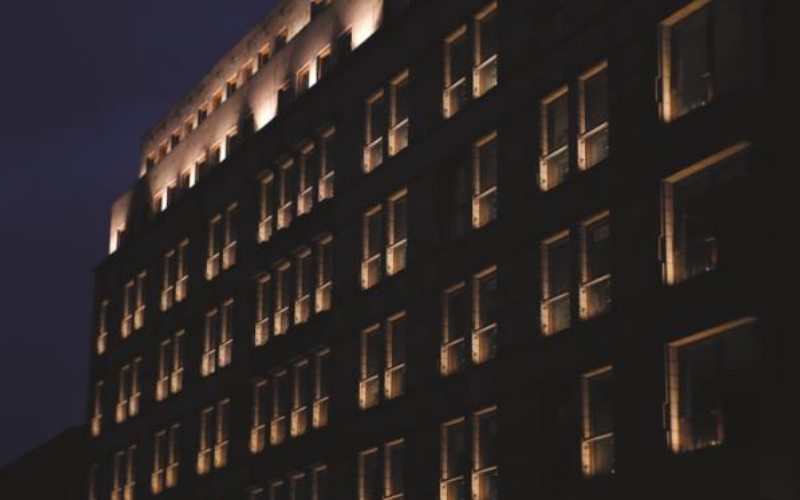

VEIL is a low-profile luminaire that produces a line of light to highlight architectural details, such as window mullions, and enhance the depth of space. The minimal design allows the luminaire to blend into the architecture while producing stunning lighting effects on window frames and mullions. The rugged design, IP65 and IK08 ratings make it perfect for exterior installations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.44"L: 2.87"H: 1.77"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI85
- Watt(Approx)5.5 W
- Lumens(Approx)130 Lm
- OpticsDirectAdjustable Optics
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralPower Supply/ControllersUNV 120-277V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLRoHS
- EnvironmentIP65MarineCorrosion Resistant
- Mounting TypeWall SurfaceSurface
- Housing
- Housing Depth
