Flos Architectural
Easy Kap 80 Square Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION

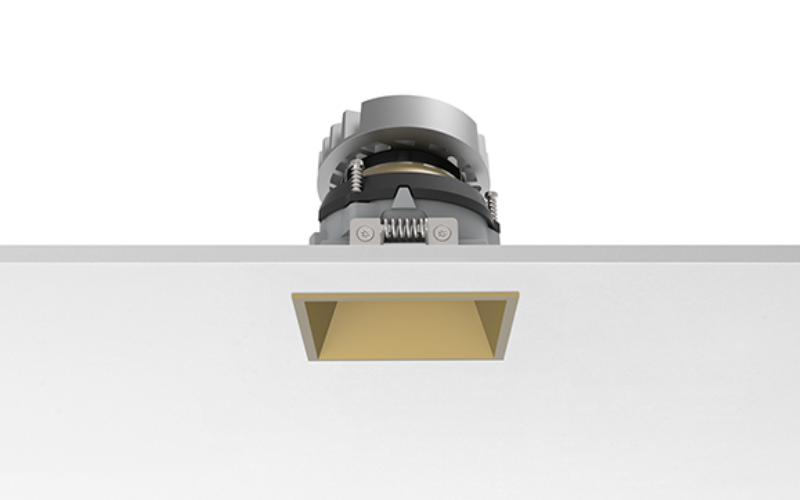

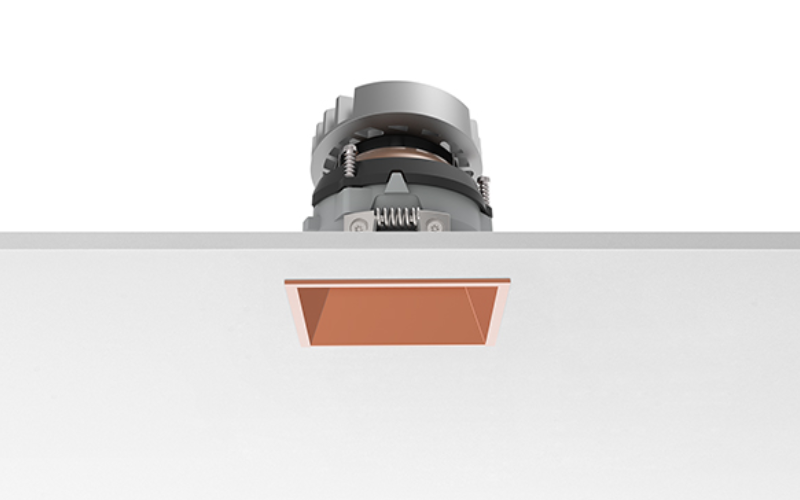

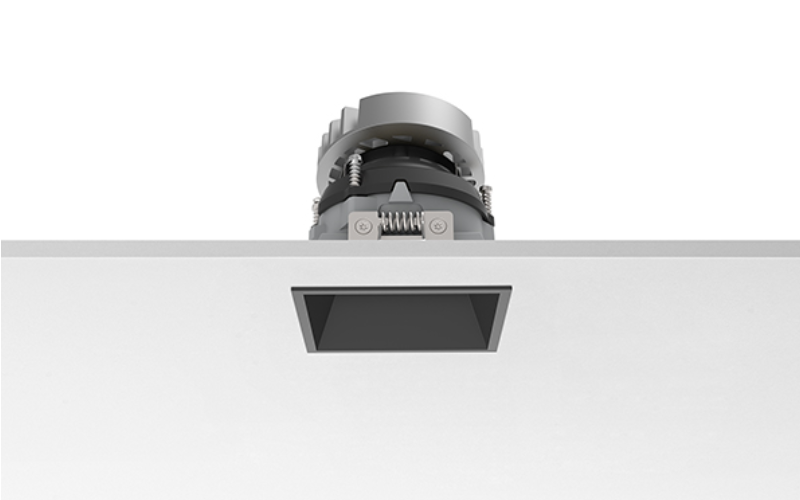

LED Downlight with minimal trim for recessed mounting into drywall or plasterboard ceilings. The Easy Kap has a die-cast aluminum body with a painted lacquer finish. This LED downlight uses cutting-edge technology which creates a higher-powered downlight due to cooler operating electronics yielding 20% higher luminous flux than earlier models. Product is JA8-2019 CA Title 24 listed and CCEA Chicago Plenum.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.15"L: 3.15"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)9.2 W
- Lumens(Approx)974 Lm935 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%ELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEKAP-80-SA
