Flos Architectural

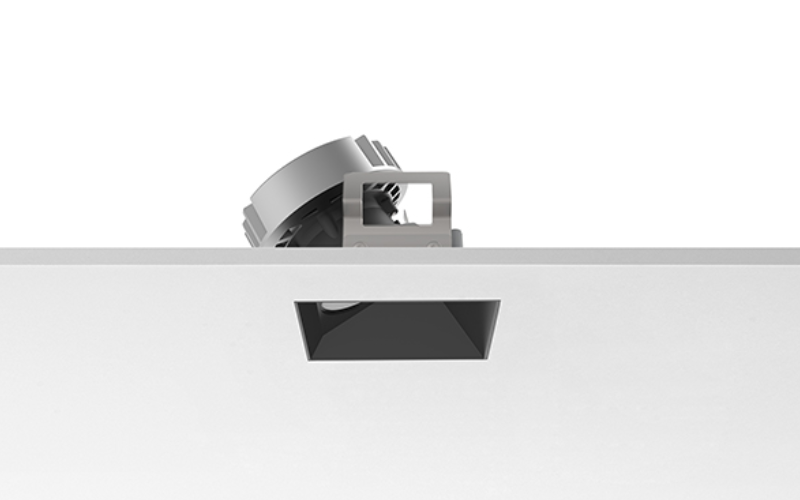

Kap 80 Squared Wall Washer Airtight.
Configure
Add to project
RESOURCES
DESCRIPTION
LED trimless downlight for new construction. Recessed mud-in mounting into drywall or plasterboard. Die-cast aluminum body with painted lacquer finish. This LED downlight uses cutting edge technology which creates a higher-powered downlight due to cooler operating electronics yielding 20% higher luminous flux than earlier models. The product is JA8-2019 CA Title 24 listed and CCEA Chicago Plenum.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.15"L: 3.15"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)9.2 W
- Lumens(Approx)974 Lm935 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULT24*
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingICChicago PlenumAir Tight
- Housing Depth3.44 ''4.2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKAP-80-SWWA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
