A2C/A2S. APERTURE. by Fluxwerx

Fluxwerx

A2C/A2S. APERTURE.

Configure

Add to project

RESOURCES

DESCRIPTION

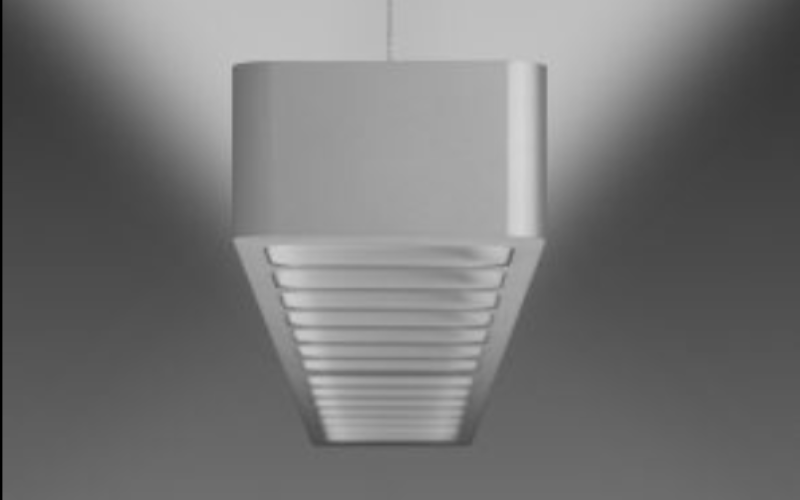

New ocular Anidolic optics provide a precisely controlled batwing distribution in both the upper and lower hemispheres, as well as a view into the architecture.

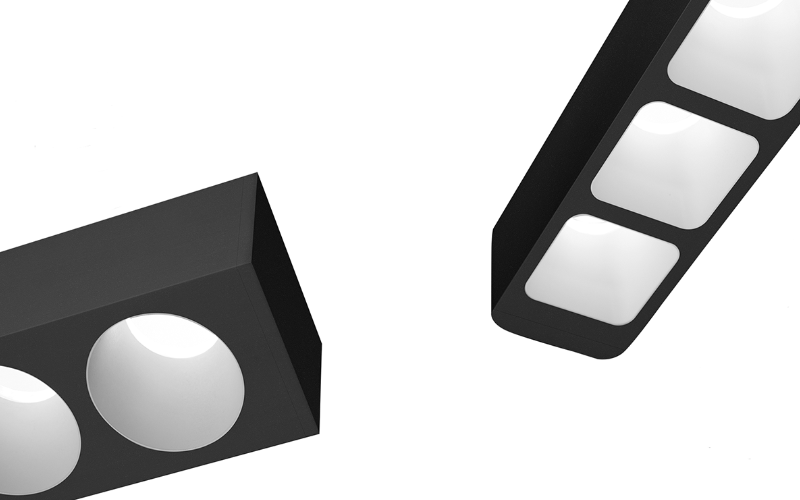

Choice of either Square or Circle cellular detail. Joined sections maintain a consistent visual rhythm of 7 cells per 2 ft length.
Developed and priced to accommodate a wide variety of budgets.
Advanced optics result in wider row spacing and reduced costs — up to 15 ft on center spacing using less than 0.40 W/ft2.
Three different light distributions for a multitude of applications: 75 Up | 25 Down, 25 Up | 75 Down and 100 Down.
Two Endcaps to choose from — Radius and Flat — preinstalled for perfect fit and finish.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 3.54"
L: 4 Ft6 Ft8 FtRun length (Ft)
H: 1.97"
Light Source
LED
CCT/Color
3000K3500K4000K
CRI
80 90
Watt^(Approx)
4.3 W/Ft5.3 W/Ft6.5 W/Ft8.5 W/Ft
Lumens^(Approx)
588 Lm/Ft750 Lm/Ft900 Lm/Ft1125 Lm/Ft
Optics
DirectDirect/IndirectIndirect/DirectBatwing
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
Controls/Network
Lutron®EnlightednLight®Wattstopper® DLMWireless DimmingIntegral Sensor
Power/Voltage
IntegralUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
200000 h
Certificates
UL/CULDeclare
Environment
Damp
Mounting Type
Pendant
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

AP-A

Lead time Cost —
