NN1. NOTCH 1. by Fluxwerx

Fluxwerx

NN1. NOTCH 1.

Configure

Add to project

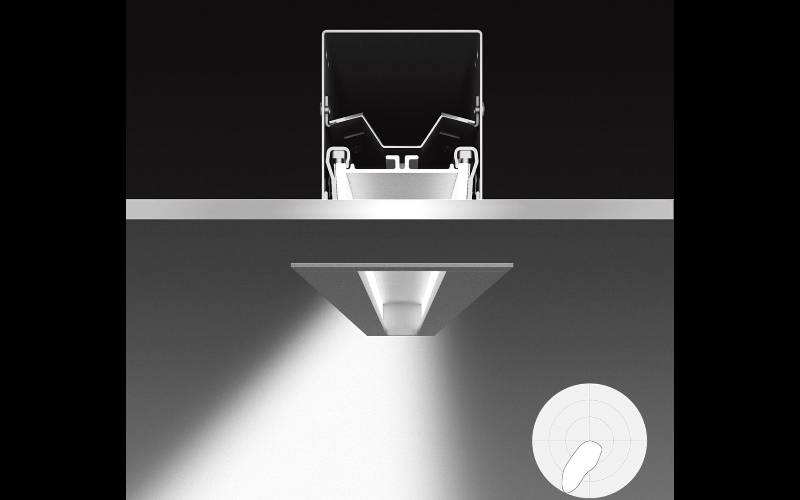

Fluxwerx. NN1-A. NOTCH 1 AREA ASYMMETRIC.

RESOURCES

DESCRIPTION

1.5" aperture, open design with fully luminous interior. No horizontal lenses or diffusers.
Recessed companion to Profile Mini suspended, smaller scale version of Notch 2.
Anidolic optics provide shielded, precisely controlled optical distributions, for low glare and wide row spacing.
Up to 12 ft oc. spacing, delivering 40 fc at less than 0.4 W/ft2 .
Length increments of 1' in drywall or 2' in T-grid ceilings.
L-Corner module enables square, rectangular and open patterns.
Extruded aluminum trims simplify installation and help installers to achieve precise fit and finish.
Optional Dado and Capsule drywall endcaps create a unique boundary for a continuous line of light.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 1.43"3.47"3.1"
L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (Ft)
Light Source
LED
CCT/Color
3000K3500K4000K
CRI
80 90
Watt^(Approx)
4.23 W/Ft5.39 W/Ft6.77 W/Ft8.41 W/Ft
Lumens^(Approx)
418 Lm/Ft529 Lm/Ft650 Lm/Ft794 Lm/Ft
Optics
DirectWide FloodAsymmetric/Wash
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
Controls/Network
Lutron®EnlightednLight®ENCELIUM®
Power/Voltage
IntegralUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
200000 h
Certificates
UL/CULDeclare
Environment
Damp
Mounting Type
Ceiling RecessedDrywallTrimless DrywallT-Grid Ceiling
Housing
ICChicago Plenum
Housing Depth
4.03 ''

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

NN1-A

Lead time Cost —
CONFIGURATOR

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

Marks unavailable product configuration, refer to manufacturer’s documentation for details
