NT1/NT2. NOTCH 2. by Fluxwerx

Fluxwerx

NT1/NT2. NOTCH 2.

Configure

Add to project

Fluxwerx. NT1-A. NOTCH 2 Area Asymmetric .

RESOURCES

DESCRIPTION

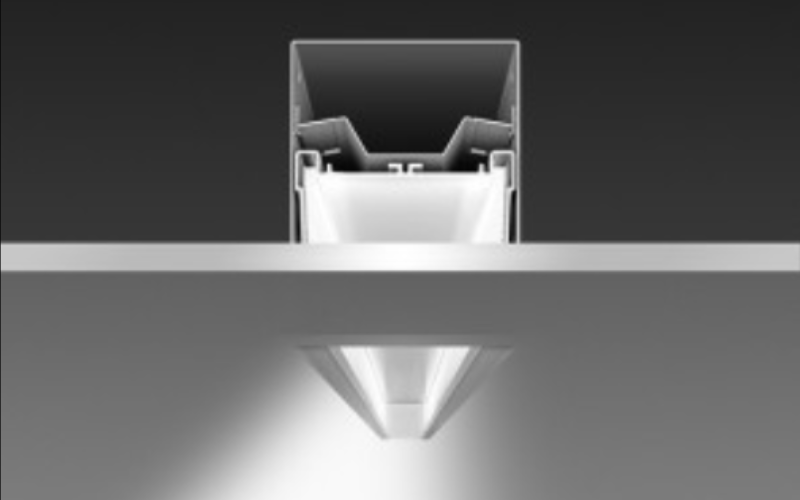

2–1/3" open aperture design with fully luminous interior. No horizontal lenses or diffusers.
Anidolic optics provide shielded, precisely controlled optical distributions, for low glare and wide row spacing.
Up to 12 ft o.c. spacing, delivering 40 fc at less than 0.5 W/ft2 .
Length increments of 1' in drywall or 2' in T-grid ceilings.
Dedicated ‘L’, ‘T’ and ‘X’ corners make it easy to create horizontal and vertical patterns.

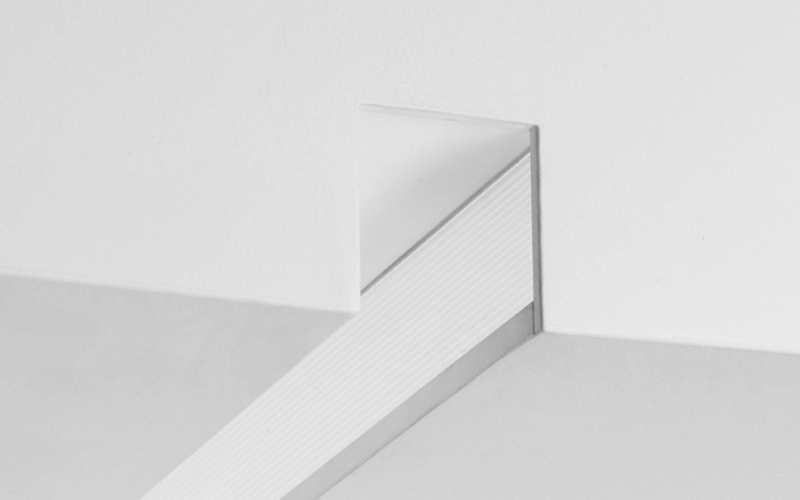

Optional Dado and Capsule drywall endcaps create a unique boundary for the line of light.
4" Armstrong TechZone® or 4" USG Logix® T-grid compatible

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 4.37"4"5.81"
L: 24"2 Ft40"3 Ft45"48"4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (Ft)
Light Source
LED
CCT/Color
3000K3500K4000KTunable White
CRI
80 90
Watt^(Approx)
4.61 W/Ft5.67 W/Ft7.02 W/Ft9.39 W/Ft
Lumens^(Approx)
470 Lm/Ft584 Lm/Ft704 Lm/Ft918 Lm/Ft
Optics
DirectWide FloodAsymmetric/Wash
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VEldoLED DUAL 0-10V
Controls/Network
Lutron®EnlightednLight®ENCELIUM®
Power/Voltage
IntegralUNV 120-277V120V277V
Integral Emergency
EM Integral
Lumen Maintenance
200000 h
Certificates
UL/CULDeclare
Environment
Damp
Mounting Type
Ceiling RecessedWall RecessedDrywallTrimless DrywallTech ZoneSlot T-Grid Ceiling
Housing
ICChicago Plenum
Housing Depth
4.68 ''

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
