RA1. RAILS. by Fluxwerx

Fluxwerx

RA1. RAILS.

Configure

Add to project

RESOURCES

DESCRIPTION

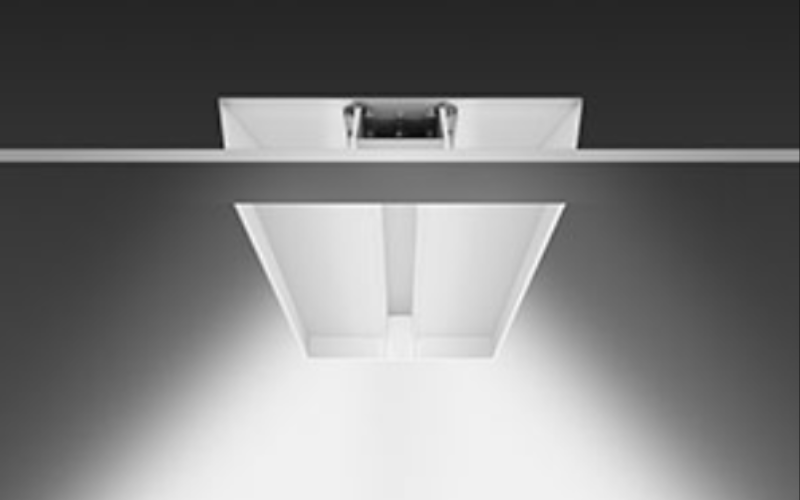

Twin parallel optical rails redefine recessed with a balance of unexpected aesthetics and uncompromising performance.
The dual lit rails, balanced with the luminous floating effect of translucent horizontal panels, eliminate visible images of intense LED point sources.
Latest linear Anidolic optics deliver an optimized batwing distribution for up to 10' x 12' spacing, delivering over 40 fc at less than 0.4 W/ft2 and workplane max/min under 1.5.
Priced for a wide range of real-world projects.
Available in three sizes — 2×2, 1×4 & 2×4 — to suit a variety of applications and spaces.
IC rated, CCEA approved, third party tested and backed by a 5-year warranty.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 1 Ft
L: 4 Ft
Light Source
LED
CCT/Color
3000K3500K4000K
CRI
80 90
Watt^(Approx)
22 W28 W36 W46 W
Lumens^(Approx)
2800 Lm3450 Lm4250 Lm5250 Lm
Optics
DirectBatwing
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
Controls/Network
Lutron®EnlightednLight®Wattstopper® DLMWireless Dimming
Power/Voltage
IntegralUNV 120-277V120V277V347V
Integral Emergency
EM Integral
Lumen Maintenance
200000 h
Certificates
UL/CULDeclare
Environment
Damp
Mounting Type
Ceiling RecessedDrywallTrimless DrywallT-Grid Ceiling
Housing
ICChicago Plenum
Housing Depth
3.5 ''

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
