Fluxwerx

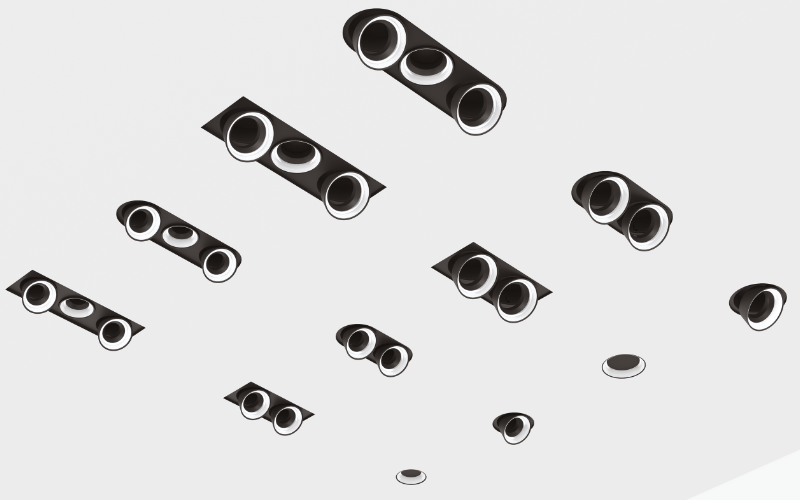

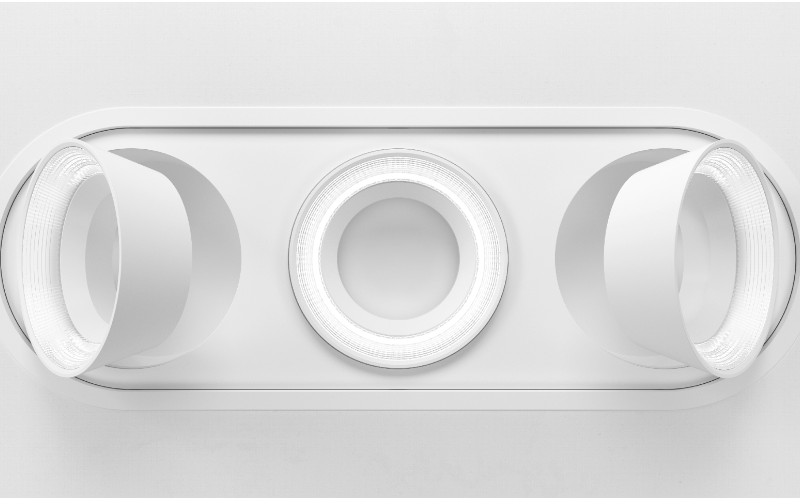

SK1M/Lx3. SPEAK RECESSED MULTIPLE 3''.
 Configure
 Add to project
Fluxwerx. SK1M/Lx3. SPEAK RECESSED MULTIPLE 3''.
Fluxwerx. SK1M/Lx3. SPEAK RECESSED MULTIPLE 3''.
Fluxwerx. SK1M/Lx3. SPEAK RECESSED MULTIPLE 3''.
Fluxwerx. SK1M/Lx3. SPEAK RECESSED MULTIPLE 3''.
RESOURCES
DESCRIPTION
Where Flexibility Meets Form. Downlighting, Reimagined.

In all its forms, Speak redefines directional and area illumination—one family, limitless possibilities. Precision-engineered optics shape a minimalist aesthetic while ensuring exceptional comfort and control in any environment.


Singular Design. Endless Possibilities.

Thoughtfully designed to serve a wide range of architectural environments, Speak family of recessed luminaires offers design freedom - with options that adapt to the space, not the other way around. Available in 76 mm and 102 mm diameters and multiple configurations, Speak delivers a comprehensive design palette.

The choice is yours.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3"4.96"4.65"
    L: 4.96"3"4.65"9.26"8.94"13.5"13.2"
  • Light Source
    LED
  • CCT/Color
    2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000K
  • CRI
    80 90
  • Watt(Approx)
    9 W14 W18 W
  • Lumens(Approx)
    800 Lm1200 Lm1700 Lm
  • Optics
    DirectFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VLutron Hi-lume EcoSystem (LDE1)Line VoltageLutron Hi-lume Premier Eco (PEQ0)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
  • Controls/Network
    Lutron®nLight®Wattstopper® DLMWireless Dimming
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    140000 h
  • Certificates
    UL/CULT24*Energy Star*Declare
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallTrimless Wood
  • Housing
    New ConstructionICChicago PlenumRetrofit
  • Housing Depth
    2.87 ''6 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
