FINELITE (Legrand)
E2-ID. E2 Indirect/Direct Configuration.
Configure
Add to project
RESOURCES
DESCRIPTION

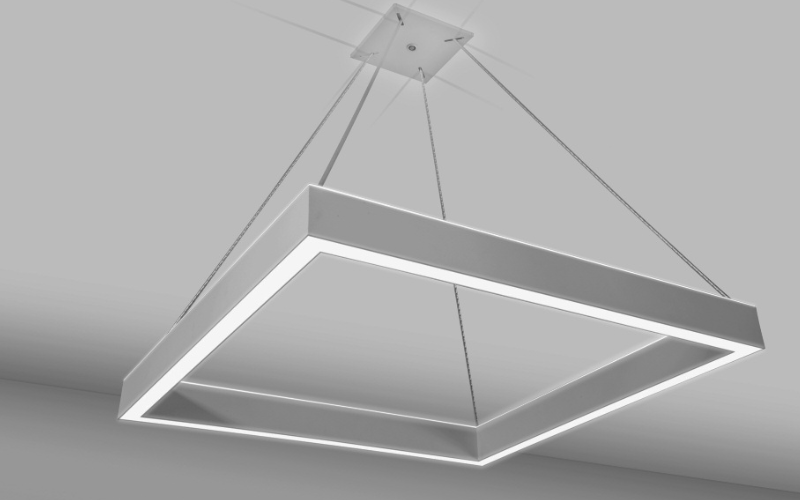

The E2 collection is an indirect/direct luminaire with a 1-1/8” aperture and 2-1/4'' height that provides excellent light output with a modern minimalist architectural profile. E2 is available in linear and prescribed configurations and features slender power suspension cabling with local or fully remote driver options that enable independent uplight and downlight control.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 Ft3 Ft4 FtL: 2 Ft3 Ft4 Ft8 FtH: 2 3/8"2 1/4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)1.48 W/Ft1.87 W/Ft2.32 W/Ft2.93 W/Ft2.8 W/Ft4.39 W/Ft3.63 W/Ft5.67 W/Ft1000000 W/Ft
- Lumens(Approx)147 Lm/Ft185 Lm/Ft230 Lm/Ft290 Lm/Ft280 Lm/Ft438 Lm/Ft360 Lm/Ft563 Lm/Ft
- OpticsIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron EcoSystem
- Controls/NetworkEnlightedIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesETLRoHSDeclare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeE2-ID
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
