FINELITE (Legrand)

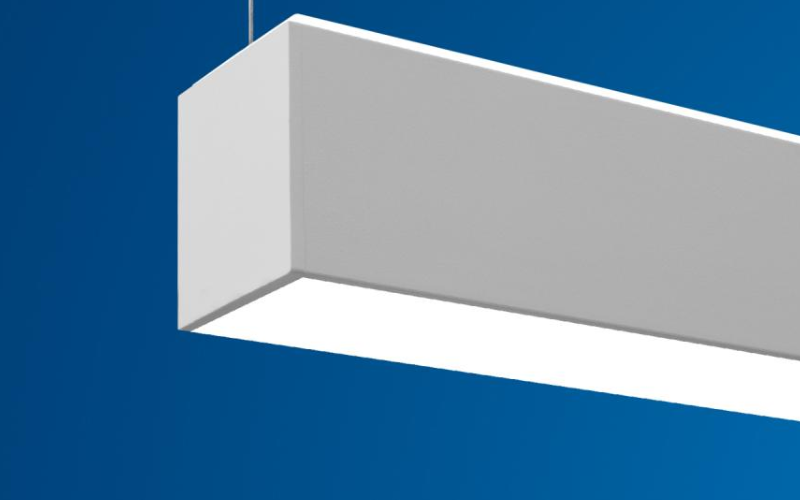

HP-4. High Performance 4'' Aperture Pendant Indirect/Direct.
Configure
Add to project
RESOURCES
DESCRIPTION
A pendant luminaire for indirect/direct illumination with a 4" aperture, HP-4 ID is available as individual fixtures in 2' minimum sections, or as a continuous run down to 1/16". This luminaire offers complete design freedom with tailored angles, tailored configurations, and a variety of indirect optics and downlight options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (inch)H: 4 3/4"4 15/16"5 1/8"5 3/4"5 15/16"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.83 W/Ft4.91 W/Ft3.27 W/Ft4.19 W/Ft6.44 W/Ft7.56 W/Ft9.83 W/Ft8.37 W/Ftcustom
- Lumens(Approx)446 Lm/Ft380 Lm/Ft478 Lm/Ft561 Lm/Ft721 Lm/Ft847 Lm/Ft927 Lm/Ft1089 Lm/Ftcustom
- OpticsIndirect/DirectGeneral DiffusedBatwing Indirect/General DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron T-Series (PSQ0)eldoLED DUAL DALIeldoLED POWER DMX/RDMeldoLED SOLO DALIeldoLED SOLO 0-10VEldoLED 0-10V/DALIOsram DEXAL
- Controls/NetworkLutron®EthernetEnlightedENCELIUM®Wattstopper® DLMIntegral Sensor
- Power/VoltageIntegralPoE120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesETLRoHSDeclare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHP-4-ID
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
