FINELITE (Legrand)

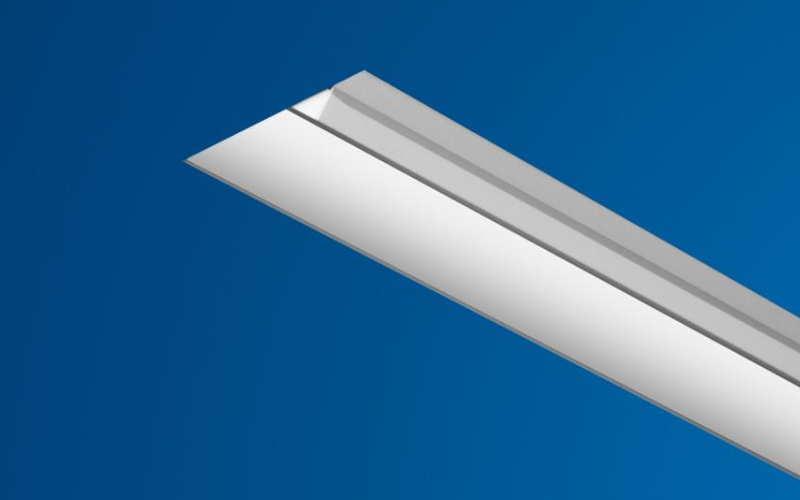

HP-4. High Performance 4'' Aperture Wall Wash Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION

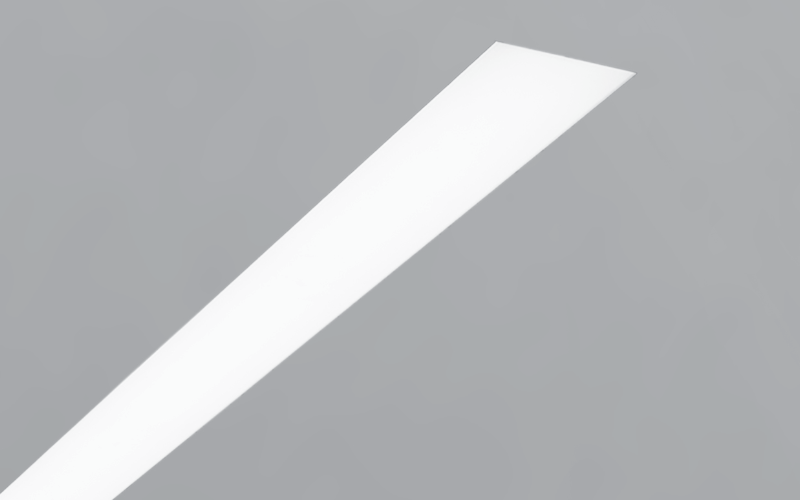

A recessed luminaire for direct wall wash illumination with a 4" aperture, HP-4 WW-R is ideal for highlighting vertical surfaces. This luminaire is available as individual fixtures in 2' minimum sections or as a continuous run down to 1/16".
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (inch)
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)2 W/Ft2.5 W/Ft3.8 W/Ft5 W/Ftcustom
- Lumens(Approx)186 Lm/Ft234 Lm/Ft353 Lm/Ft454 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron T-Series (PSQ0)eldoLED DUAL DALIeldoLED POWER DMX/RDMeldoLED SOLO DALIeldoLED SOLO 0-10VOsram DEXAL
- Controls/NetworkLutron®EthernetWattstopper® DLMIntegral Sensor
- Power/VoltageIntegralPoE120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesETLRoHSDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywallT-Grid CeilingTech ZoneSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHP-4-WW-R_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
