FINELITE (Legrand)
HP-4C. High Performance 4'' Aperture Circle Indirect/Direct.
Configure
Add to project
RESOURCES
DESCRIPTION

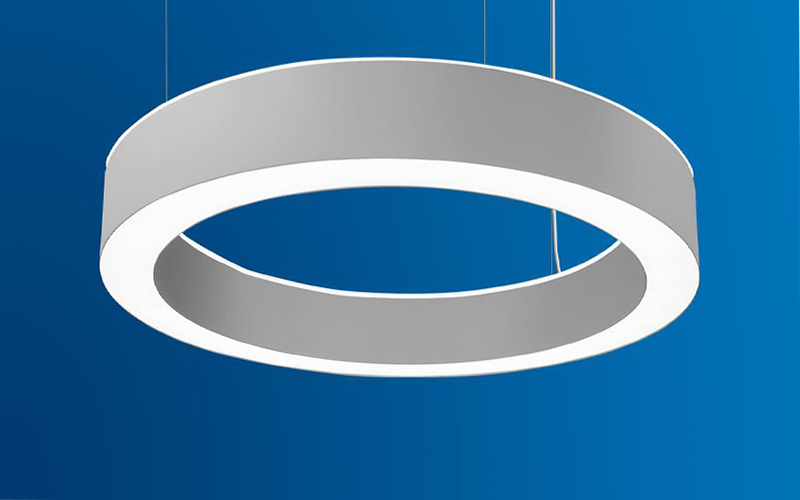

A pendant luminaire for indirect/direct illumination with a 4" aperture, HP-4 Circle ID is available in nominal diameters of 2', 3', and 4'. This luminaire is constructed with an extruded aluminum body and a single-piece direct diffuser for a seamless aesthetic.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24 1/8"36 1/8"48 1/8"L: 24 1/8"36 1/8"48 1/8"H: 4 3/4"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.1 W3.32 W4.25 W3.5 W4.45 W3.95 W6.55 W8.55 W6.85 W8.95 W6.1 W7.95 Wcustom
- Lumens(Approx)2192 Lm2756 Lm4713 Lm3705 Lm4658 Lm4165 Lm5925 Lm5355 Lm8955 Lm7039 Lm9050 Lm11514 Lmcustom
- OpticsIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron T-Series (PSQ0)eldoLED DUAL DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VOsram DEXAL
- Controls/NetworkEthernet
- Power/VoltageIntegralPoE120V277V347V
- Integral Emergency
- Lumen Maintenance200000 h
- CertificatesETLRoHSDeclare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHP-4C-ID
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
