FINELITE (Legrand)
HP. High Performance Flush Indirect/Direct.
Configure
Add to project
RESOURCES
DESCRIPTION

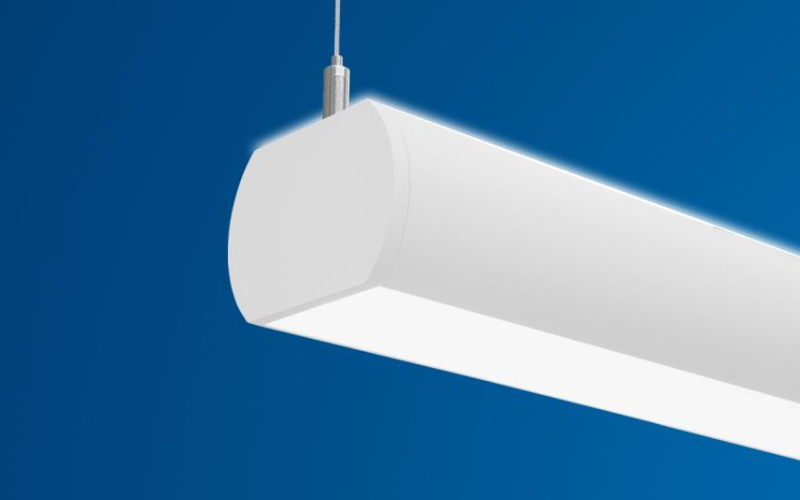

A pendant linear luminaire with a micro round 3.5" diameter form factor for direct illumination. Featuring a flush lens 2.5" aperture, HPO is equipped with an integral driver design and has tailored lengths from 2' to 12' in 1' increments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (Ft)H: 2 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.4 W/Ft4.3 W/Ft6.6 W/Ft8.65 W/Ftcustom
- Lumens(Approx)443 Lm/Ft426 Lm/Ft557 Lm/Ft535 Lm/Ft842 Lm/Ft809 Lm/Ft1083 Lm/Ft1040 Lm/Ftcustom
- OpticsIndirect/DirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED DUAL DALIeldoLED POWER DMX/RDMeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VOsram DEXAL
- Controls/NetworkLutron®EthernetEnlightedENCELIUM®Wattstopper® DLMWireless DimmingIntegral Sensor
- Power/VoltageIntegralPoE120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesETLT24*RoHSDeclare
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHPO-F-ID_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
