FINELITE (Legrand)

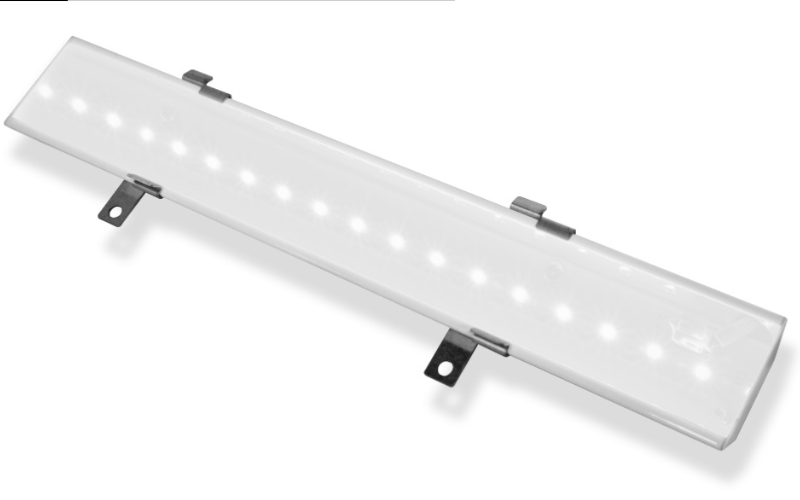

S11-LED-MF. Series 11 LED Micro Flex Cove.
Configure
Add to project
RESOURCES
DESCRIPTION
A 1' segment luminaire joined by quick-connect low-voltage cables to accommodate convex and concave cove applications. The Micro Flex Cove has a minimum 2' length and requires a driver every 8 segments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.6"L: 2 Ft3 Ft4 Ft8 FtRun length (Ft)H: 2.27"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)2 W/Ft2.5 W/Ft3.8 W/Ft4.9 W/Ft
- Lumens(Approx)236 Lm/Ft297 Lm/Ft449 Lm/Ft578 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance200000 h
- CertificatesETLDeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeS11-MF
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
