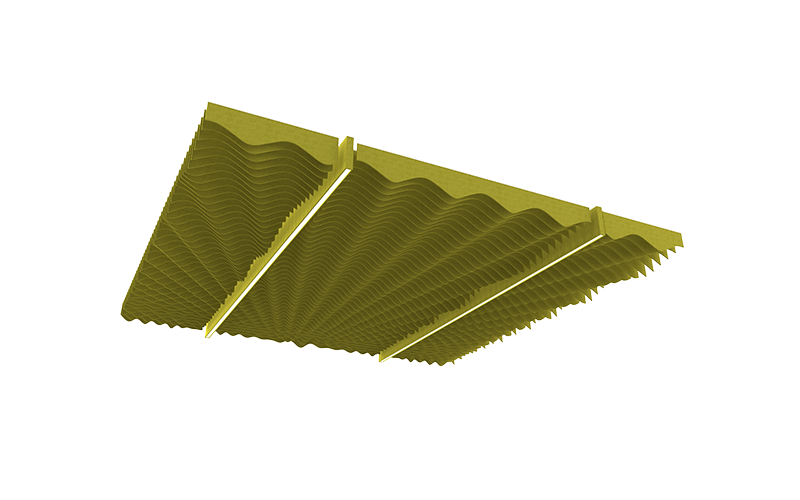

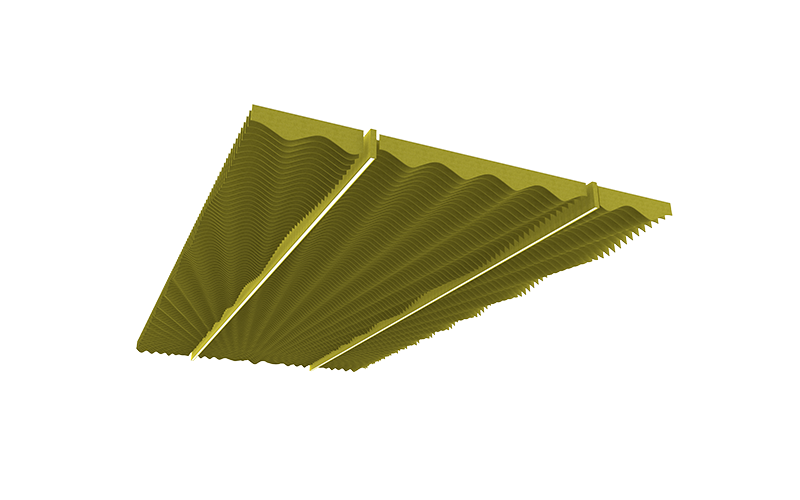

Focal Point (Legrand)
AMR. Mora Create Radiate.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Acoustical ceiling system comprised of a narrow sound absorbing acoustic baffle and a slim linear luminaire with powerful optics.
Custom-sized arrays that fit the exact dimensions of each room.
Uses AirCore®: patented, eco-friendly technology to maximize sound absorption and reduce ecological impact.
Acoustic housing is available in a wide solid color palette, ranging from neutral to bold, as well as The Naturals, a series of nature-inspired finishes and Cosmic, colorways inspired by celestial beauty.
Regress or batwing lens meet the lighting needs of each space.
Companion to Mora Build Arch and Wave, and Mora Create Alpine and Ripple.
Performance
A truly integrated acoustic and lighting system from a single manufacturer facilitates meeting noise reduction and architectural lighting requirements.
Sound absorbing material made of 100% polyester containing up to 50% of recycled plastic bottles (PET).
Declare certified, LBC Red List Free.
ASTM E-84 Class A / CAN ULC S102 fire rating and moisture resistant.
Application
Custom-sized arrays up to 208' in length allow for the placement of the luminaires to fulfill the lighting requirements of the space.
On-center spacing of the baffles of 4", 6" or 12" yield dramatically different visual appearance.
Easy installation in various ceiling conditions with StrutKlip, magnets, or cables.
Make an exceptional aesthetic statement and achieve desired reverberation levels and optimal lighting in conference rooms, offices, reception areas, hospitality spaces, and educational facilities.
Acoustical ceiling system comprised of a narrow sound absorbing acoustic baffle and a slim linear luminaire with powerful optics.
Custom-sized arrays that fit the exact dimensions of each room.
Uses AirCore®: patented, eco-friendly technology to maximize sound absorption and reduce ecological impact.
Acoustic housing is available in a wide solid color palette, ranging from neutral to bold, as well as The Naturals, a series of nature-inspired finishes and Cosmic, colorways inspired by celestial beauty.
Regress or batwing lens meet the lighting needs of each space.
Companion to Mora Build Arch and Wave, and Mora Create Alpine and Ripple.
Performance
A truly integrated acoustic and lighting system from a single manufacturer facilitates meeting noise reduction and architectural lighting requirements.
Sound absorbing material made of 100% polyester containing up to 50% of recycled plastic bottles (PET).
Declare certified, LBC Red List Free.
ASTM E-84 Class A / CAN ULC S102 fire rating and moisture resistant.
Application
Custom-sized arrays up to 208' in length allow for the placement of the luminaires to fulfill the lighting requirements of the space.
On-center spacing of the baffles of 4", 6" or 12" yield dramatically different visual appearance.
Easy installation in various ceiling conditions with StrutKlip, magnets, or cables.
Make an exceptional aesthetic statement and achieve desired reverberation levels and optimal lighting in conference rooms, offices, reception areas, hospitality spaces, and educational facilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: Run length (inch)H: 11.25"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)
- Lumens(Approx)100 Lm/Ft200 Lm/Ft300 Lm/Ft400 Lm/Ft500 Lm/Ft
- OpticsDirectGeneral DiffusedBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance61000 h
- CertificatesETLDeclare
- EnvironmentAcoustic Absorption
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAMR-CRD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
