Focal Point (Legrand)
ASM2BS. Seem 2 Acoustic LED DIRECT/INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design

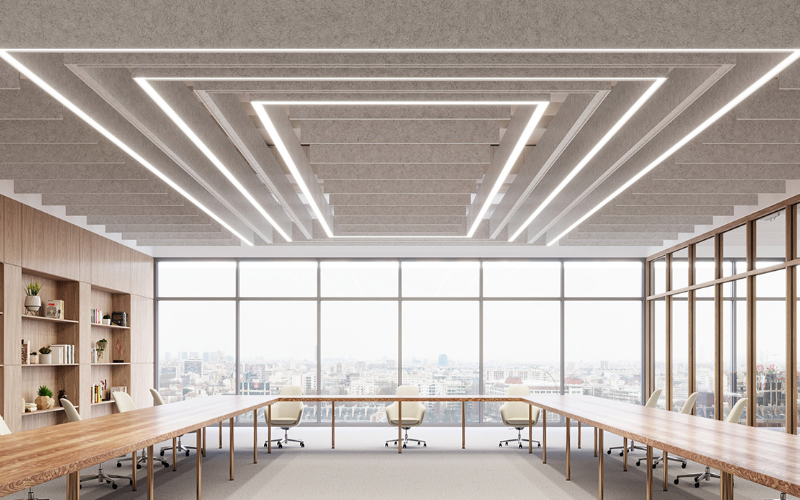

2.5" aperture sound absorbing suspended direct/indirect LED luminaire.
Available with fully illuminated 90° corners
Uses AirCore®: patented, eco-friendly technology to maximize sound absorption and reduce ecological impact.
Acoustic housing is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Linear LED boards create seamless lines of light without pixels or shadows.
Direct/indirect illumination can be specified and controlled independently.
Broad batwing distribution provides comfortable illumination and allows for wide spacing between luminaires.
Acoustic housing material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET).
ASTM E-84 Class A / CAN ULC S102 fire rating and moisture resistant.
Unlit, sound-absorbing acoustic companion available to achieve the desired reverberation levels with a coordinated look.
Application
Supports diverse applications with 4' - 208' lengths in 1" increments with 8", 12" or 16" housing heights.
Make an exceptional aesthetic statement and achieve desired reverberation levels in conference rooms, offices, reception areas and other open commercial spaces.
2.5" aperture sound absorbing suspended direct/indirect LED luminaire.
Available with fully illuminated 90° corners
Uses AirCore®: patented, eco-friendly technology to maximize sound absorption and reduce ecological impact.
Acoustic housing is available in a wide color palette, ranging from neutral to bold, to provide design flexibility and personalization for any project.
Performance
Linear LED boards create seamless lines of light without pixels or shadows.
Direct/indirect illumination can be specified and controlled independently.
Broad batwing distribution provides comfortable illumination and allows for wide spacing between luminaires.
Acoustic housing material is made of 100% polyester containing up to 50% of recycled plastic bottles (PET).
ASTM E-84 Class A / CAN ULC S102 fire rating and moisture resistant.
Unlit, sound-absorbing acoustic companion available to achieve the desired reverberation levels with a coordinated look.
Application
Supports diverse applications with 4' - 208' lengths in 1" increments with 8", 12" or 16" housing heights.
Make an exceptional aesthetic statement and achieve desired reverberation levels in conference rooms, offices, reception areas and other open commercial spaces.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.24"L: 4 Ft5 Ft6 Ft7 Ft8 Ft9 Ft10 Ft11 Ft12 FtMore than 12 FtRun length (inch)H: 7.25"11.25"15.25"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)1.875 W/Ft2.625 W/Ft3.375 W/Ft4.125 W/Ft5.875 W/Ft7.625 W/Ft8.5 W/Ft10.5 W/Ft
- Lumens(Approx)200 Lm/Ft300 Lm/Ft400 Lm/Ft500 Lm/Ft700 Lm/Ft900 Lm/Ft1000 Lm/Ft1200 Lm/Ft
- OpticsDirect/IndirectGeneral DiffusedAsymmetric/WashBatwingBatwing Indirect/General DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance61000 h
- CertificatesUL/CULDeclare
- EnvironmentAcoustic Absorption
- Mounting TypePendant
- Housing
- Housing Depth
