Focal Point (Legrand)

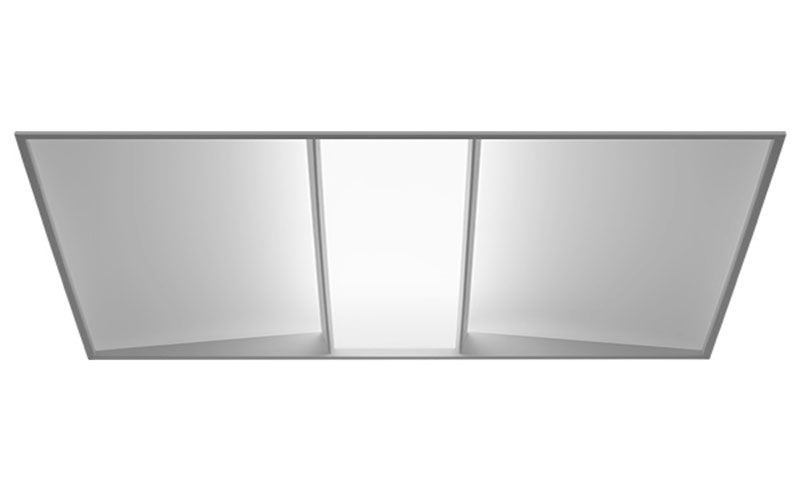

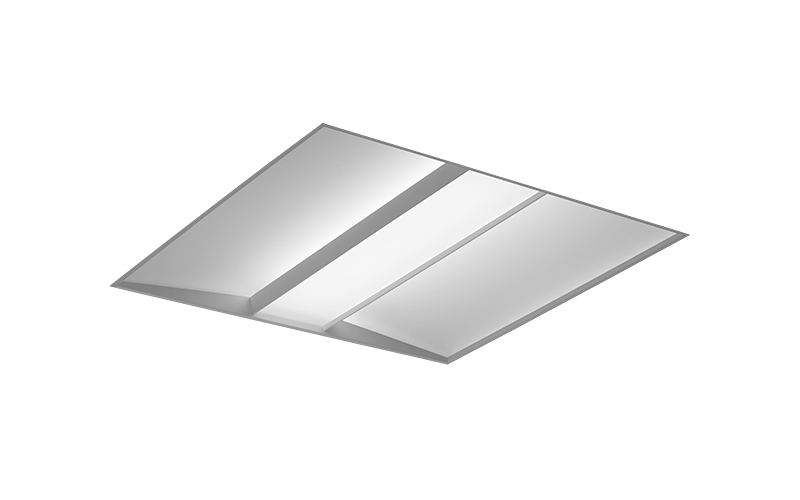

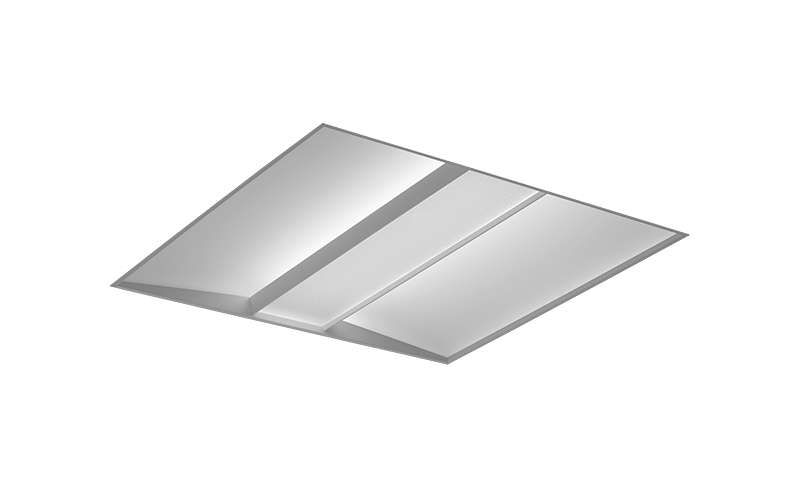

FEQ2. Equation 2 2x2 LED TUNABLE WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Aesthetics + Performance = Equation 2
Available in recessed, suspended and surface mount styles, Equation 2 is the next generation of our aesthetically pleasing, high-performance luminaire.
Performance
Equation 2 blends sleek aesthetics with uniform diffuse illumination
Center diffuser features Microglow prismatic lens for brightness control and visual comfort. Opal acrylic center lens may be specified for more efficacious solution.
Standard Right Light lumen outputs from 2000-5000
Application
Equation 2 is one of our most versatile fixtures, perfect for use in any open office or corridor.
Also offered in 1x1 and 1x4 perfect for private offices and special applications.
Aesthetics + Performance = Equation 2
Available in recessed, suspended and surface mount styles, Equation 2 is the next generation of our aesthetically pleasing, high-performance luminaire.
Performance
Equation 2 blends sleek aesthetics with uniform diffuse illumination
Center diffuser features Microglow prismatic lens for brightness control and visual comfort. Opal acrylic center lens may be specified for more efficacious solution.
Standard Right Light lumen outputs from 2000-5000
Application
Equation 2 is one of our most versatile fixtures, perfect for use in any open office or corridor.
Also offered in 1x1 and 1x4 perfect for private offices and special applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft
- Light SourceLED
- CCT/ColorTunable White
- CRI80 90
- Watt(Approx)24 W30 W29 W37 W34 W39 W43 W45 W51 W61 W68 W74 W81 W
- Lumens(Approx)2001 Lm2508 Lm2999 Lm3000 Lm3511 Lm3503 Lm3999 Lm4508 Lm5008 Lm5501 Lm6003 Lm6516 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago PlenumAir Return
- Housing Depth3.91 ''4.89 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFEQ2-22-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
