Focal Point (Legrand)

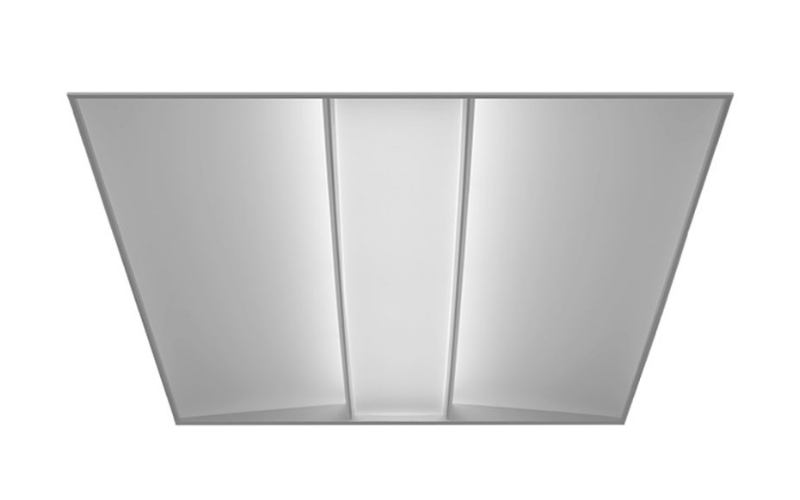

FEQ2. Equation 2 2x4 LED TUNABLE WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Aesthetics + Performance = Equation 2
Available in recessed, suspended and surface mount styles, Equation 2 is the next generation of our aesthetically pleasing, high-performance luminaire.
Performance
Equation 2 blends sleek aesthetics with uniform diffuse illumination

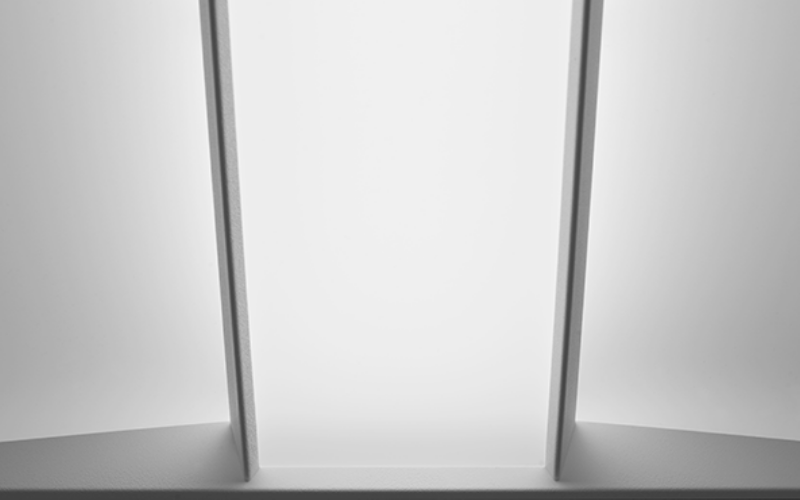

Center diffuser features Microglow prismatic lens for brightness control and visual comfort. Opal acrylic center lens may be specified for more efficacious solution.
Standard Right Light lumen outputs from 4000-8500
Application
Equation 2 is one of our most versatile fixtures, perfect for use in any open office or corridor.
Also offered in 1x1 and 1x4 perfect for private offices and special applications.
Aesthetics + Performance = Equation 2
Available in recessed, suspended and surface mount styles, Equation 2 is the next generation of our aesthetically pleasing, high-performance luminaire.
Performance
Equation 2 blends sleek aesthetics with uniform diffuse illumination
Center diffuser features Microglow prismatic lens for brightness control and visual comfort. Opal acrylic center lens may be specified for more efficacious solution.
Standard Right Light lumen outputs from 4000-8500
Application
Equation 2 is one of our most versatile fixtures, perfect for use in any open office or corridor.
Also offered in 1x1 and 1x4 perfect for private offices and special applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 4 FtH: 3.91"
- Light SourceLED
- CCT/ColorTunable White
- CRI80 90
- Watt(Approx)40 W41 W46 W45 W51 W61 W59 W64 W67 W71 W77 W82 W86 W
- Lumens(Approx)3998 Lm4497 Lm4002 Lm4510 Lm5011 Lm5517 Lm6061 Lm6512 Lm7006 Lm7519 Lm8006 Lm8512 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance61000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago PlenumAir Return
- Housing Depth3.91 ''4.89 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFEQ2-24-TW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
