Focal Point (Legrand)

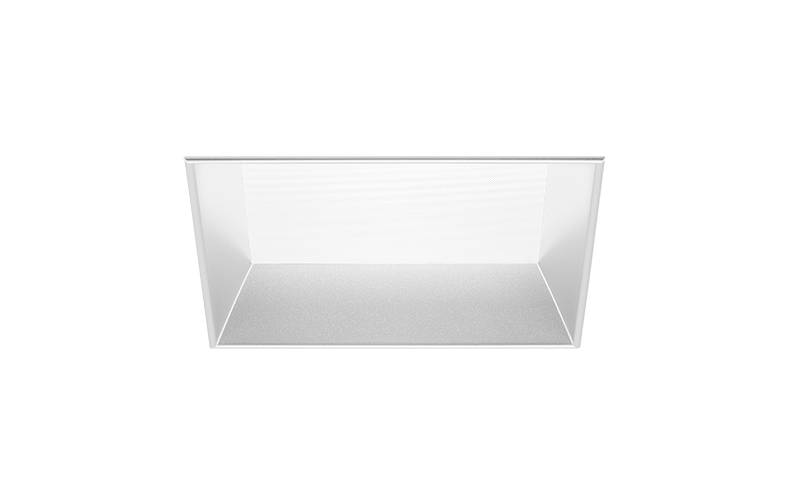

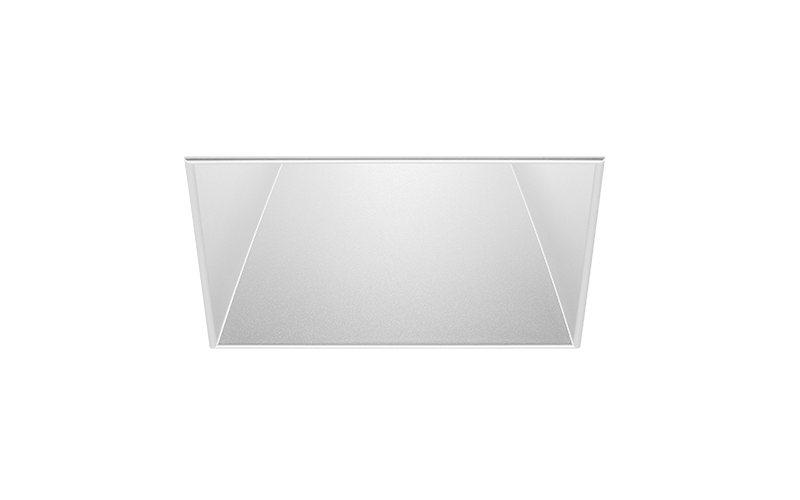

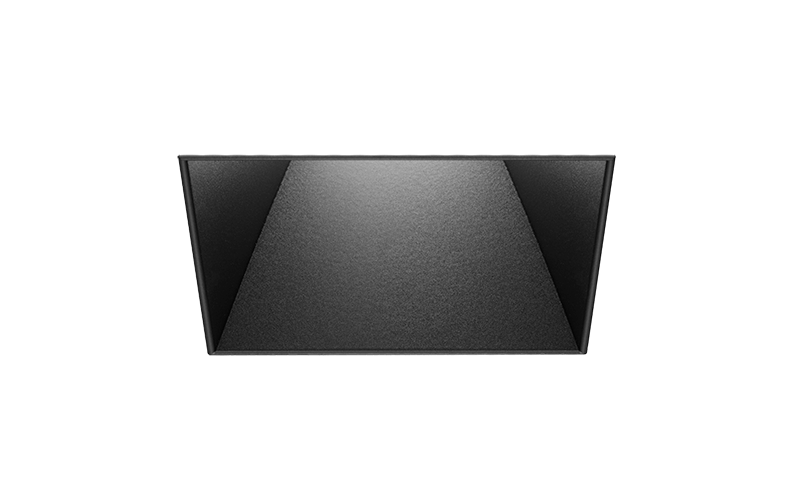

FLC44D. ID+ 4.5'' x 4.5'' Trimless LED DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
A true Trimless option for Mud-in drywall installations.
50- and 75-degree cutoff to light source promotes visual comfort.
Narrow flood, flood, wide flood, very wide, and super wide beam spreads.
Die-cast trims.
Available with The Naturals, a series of nature-inspired finishes.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
A wide selection of dimming drivers available.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
General downlighting
A true Trimless option for Mud-in drywall installations.
50- and 75-degree cutoff to light source promotes visual comfort.
Narrow flood, flood, wide flood, very wide, and super wide beam spreads.
Die-cast trims.
Available with The Naturals, a series of nature-inspired finishes.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
A wide selection of dimming drivers available.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
General downlighting
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.14"L: 5.14"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI80 90
- Watt(Approx)11 W19 W25 W32 W36 W
- Lumens(Approx)1032 Lm1552 Lm2061 Lm2492 Lm2981 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULEnergy Star*
- EnvironmentWet
- Mounting TypeCeiling RecessedTrimless DrywallTrimless Wood
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth4.56 ''6.13 ''6.02 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLC44D-ST
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
