Focal Point (Legrand)

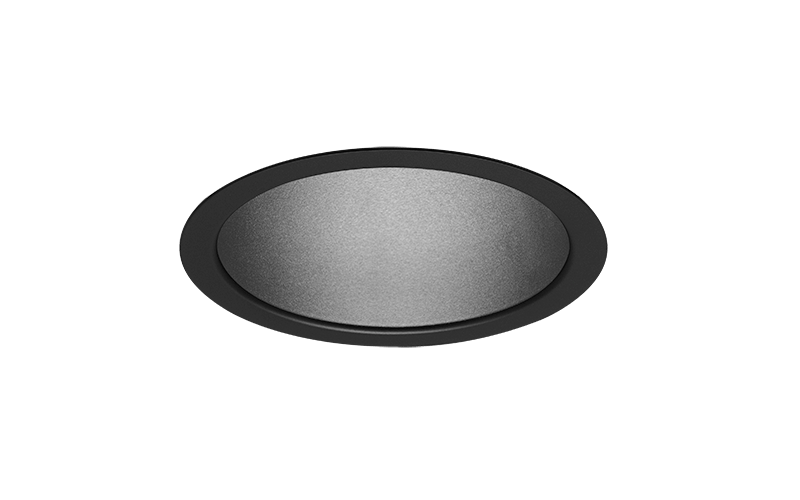

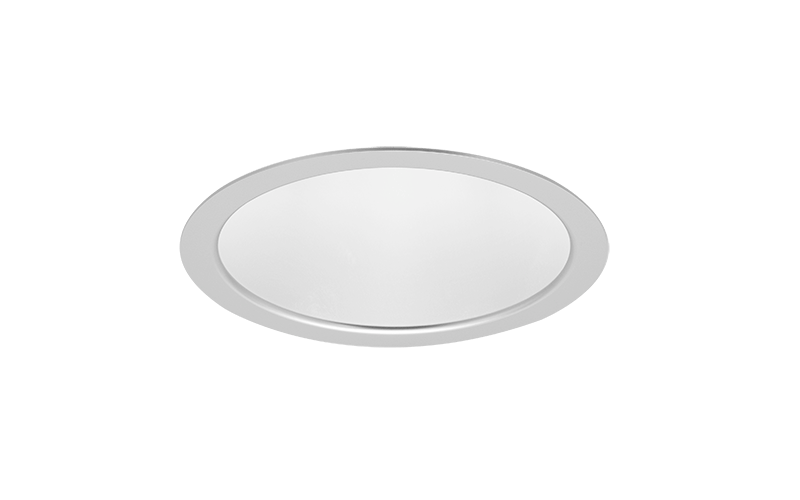

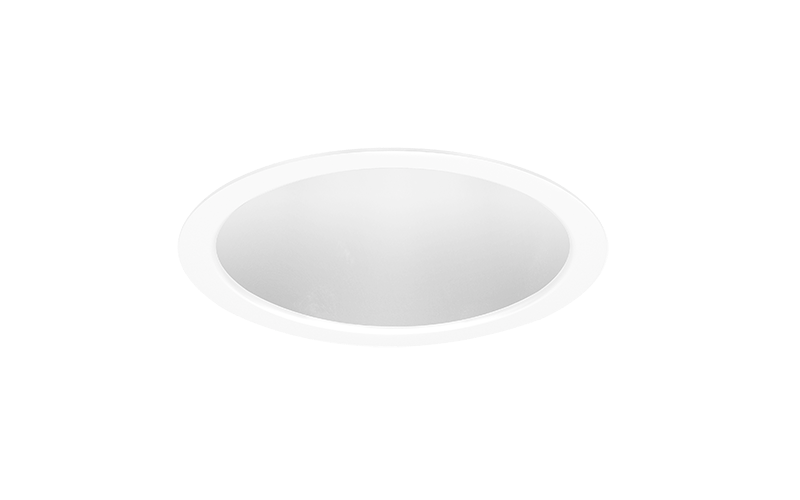

FLC4D. ID+ 4.5 LED DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
Design
Clear Diffuse reflector cone features superior brightness control.
50- and 75-degree cut-off to light source promotes visual comfort.
Narrow flood, flood, wide flood, very wide, and super wide beam spreads.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
A wide selection of dimming drivers available.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
General downlighting
Clear Diffuse reflector cone features superior brightness control.
50- and 75-degree cut-off to light source promotes visual comfort.
Narrow flood, flood, wide flood, very wide, and super wide beam spreads.
Performance
Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 and 3000.
A wide selection of dimming drivers available.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.
Application
General downlighting
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.5"L: 5.5"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K
- CRI80 90
- Watt(Approx)11 W19 W26 W32 W36 W
- Lumens(Approx)1045 Lm1571 Lm2087 Lm2523 Lm3050 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance55000 h
- CertificatesUL/CULEnergy Star*
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingTech Zone
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth5.2 ''6.13 ''6.02 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFLC4D-RO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
