Focal Point (Legrand)
FLC4W. ID+ 4.5 Trimless LED WALL WASH.
 Configure
 Add to project

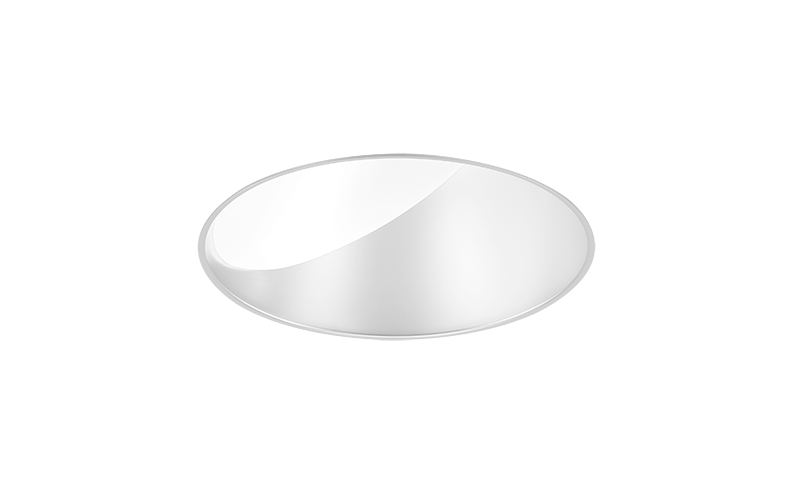

Focal Point. FLC4W. ID+ 4.5 Trimless LED WALL WASH.

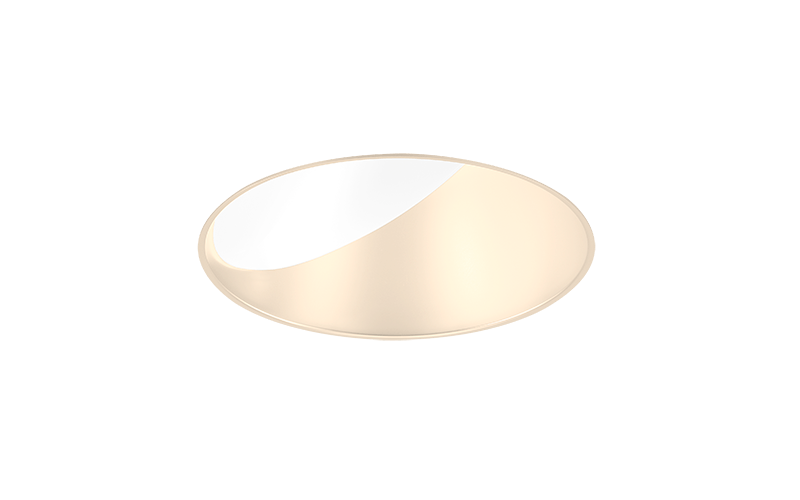

Focal Point. FLC4W. ID+ 4.5 Trimless LED WALL WASH.

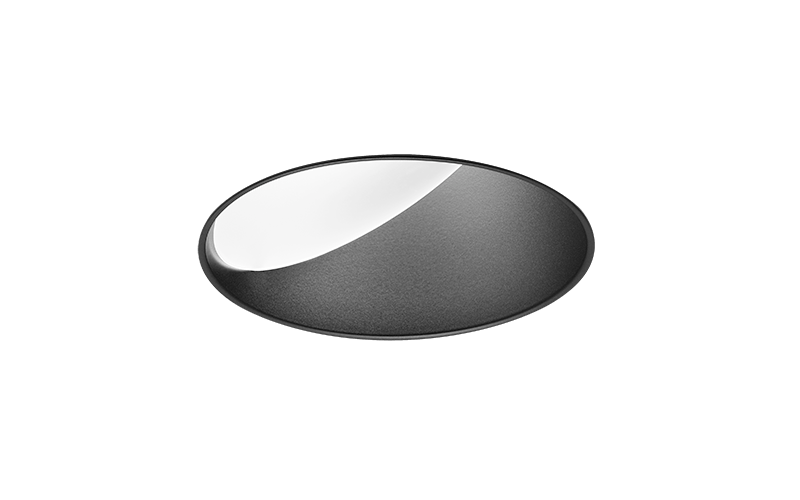

Focal Point. FLC4W. ID+ 4.5 Trimless LED WALL WASH.
Focal Point. FLC4W. ID+ 4.5 Trimless LED WALL WASH.
RESOURCES
DESCRIPTION
Design

A true Trimless option for Mud-in drywall installations.
Clear Diffuse reflector cone features superior brightness control.
50 degree cutoff to light source and its image.

Performance

Right Light: Standard delivered lumen outputs 1000, 1500, 2000, 2500 & 3000.
A wide selection of dimming drivers available.
Two warm dim spectra mimic the black body curves of halogen and incandescent light sources.
Standard white light temperatures from 2700K to 4000K.

Application

General wall washing.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5.09"
    L: 5.09"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    11 W19 W26 W32 W36 W
  • Lumens(Approx)
    978 Lm1471 Lm1954 Lm2384 Lm2860 Lm
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
  • Lumen Maintenance
    55000 h
  • Certificates
    UL/CULEnergy Star*
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedTrimless Drywall
  • Housing
    New ConstructionChicago PlenumIC Air Tight
  • Housing Depth
    5.2 ''6.13 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
